This 47B series mom-off-mom SPDT switch from Grayhill features a maximum operating temperature of 85°C and a minimum operating temperature of -30°C. It has a maximum voltage rating of 20V AC and DC, and is rated for 50000 electrical cycles. The switch is IP67 compliant, waterproof, and dust tight, and meets RoHS compliance requirements. It is available in a bracket mount/through hole package type.
MountingThrough Hole, Brackets
Quick Jump:
Technical Specifications
Grayhill 47BWSP4R1V2RT technical specifications.
General
| Actuator Material | Nylon |
| Actuator Type | Concave (Standard V) |
| Contact Material | Copper Alloy |
| Contact Plating | Nickel, Gold |
| Depth | 9.27mm |
| Electrical Life | 50000Cycles |
| Length | 16.26mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Voltage Rating (AC) | 20V |
| Max Voltage Rating (DC) | 20V |
| Mount | Through Hole, Brackets |
| Packaging | Bulk |
| Ratings | IP67, Waterproof, Dust Tight |
| RoHS Compliant | Yes |
| Series | 47B |
| Switch Function | Mom-Off-Mom |
| Termination | PC Pins |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 20V |
| DC Rated Voltage | 20V |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 47BWSP4R1V2RT Datasheet
Download the complete datasheet for Grayhill 47BWSP4R1V2RT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

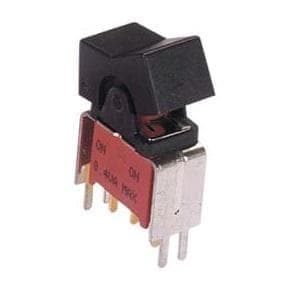

Product Images
