MountingThrough Hole, Brackets
Quick Jump:
Technical Specifications
Grayhill 47DWMSP3R2M6RT technical specifications.
General
Actuator Material
Nylon
Contact Material
Copper Alloy
Contact Plating
Nickel, Gold
Electrical Life
30000Cycles
Length
14.73mm
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
20V
Max Voltage Rating (DC)
20V
Mount
Through Hole, Brackets
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
47D
Switch Function
On-Off-On
Termination
PC Pins
Throw Configuration
SPDT
Voltage Rating (AC)
20V
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
Grayhill 47DWMSP3R2M6RT Datasheet
Download the complete datasheet for Grayhill 47DWMSP3R2M6RT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

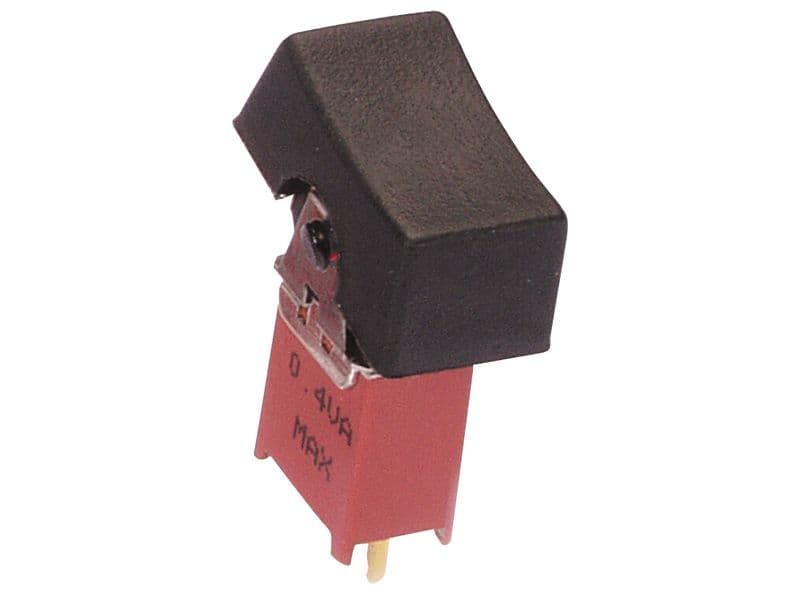

Product Images
