Grayhill
48ASSP1S2M6RAT
Switch Slide ON None ON SPDT Extended Side Slide 20VAC 20VDC 0.4VA PC Pins Bracket Mount/Through Hole
MountingPanel, Through Hole, Brackets
Quick Jump:
Technical Specifications
Grayhill 48ASSP1S2M6RAT technical specifications.
General
Actuator Length
7.24mm
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Material
Copper Alloy
Contact Plating
Gold, Nickel
Electrical Life
30000Cycles
Length
13.57mm
Max Operating Temperature
85°C
Min Operating Temperature
-30°C
Max Voltage Rating (AC)
20V
Max Voltage Rating (DC)
20V
Mount
Panel, Through Hole, Brackets
Package Quantity
1
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
48A
Switch Function
On-On
Switch Travel
2.16mm
Termination
PC Pins
Throw Configuration
SPDT
Voltage Rating (AC)
20V
DC Rated Voltage
20V
Compliance
RoHS
Compliant
Datasheet
Grayhill 48ASSP1S2M6RAT Datasheet
Download the complete datasheet for Grayhill 48ASSP1S2M6RAT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

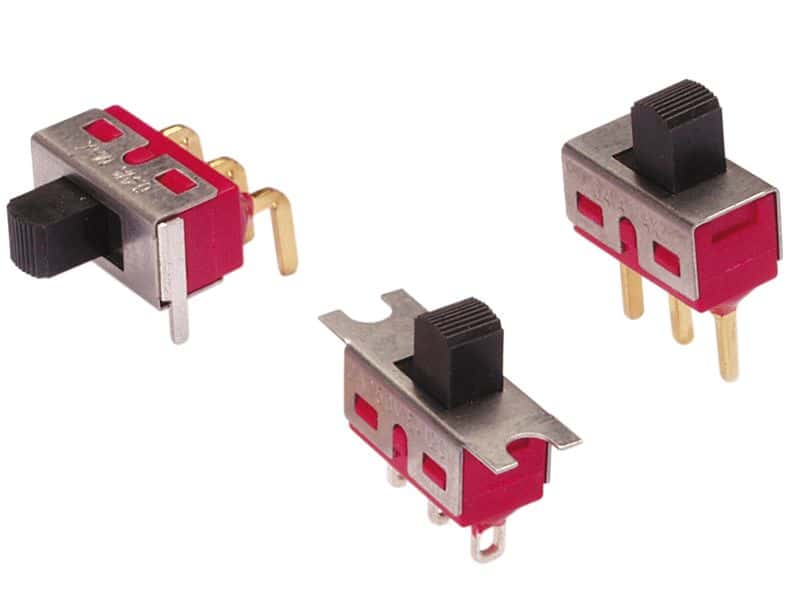

Product Images
