The 62H4522-H9-040C is a concentric switch with a built-in switch, featuring a brass and tin contact plating. It has a detent mechanism and provides a quadrature, incremental output. The switch is designed for panel mount and is RoHS compliant. The 62H4522-H9-040C is an optical encoder type switch with a vertical orientation.
MountingPanel
Quick Jump:
Technical Specifications
Grayhill 62H4522-H9-040C technical specifications.
General
| Actuator Type | Concentric |
| Built in Switch | Yes |
| Contact Plating | Brass, Tin |
| Detent | Yes |
| Encoder Type | Optical |
| Mount | Panel |
| Orientation | Vertical |
| Output Type | Quadrature, Incremental |
| Package Quantity | 1 |
| RoHS Compliant | Yes |
| Series | 62H |
| Termination | Cable |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 62H4522-H9-040C Datasheet
Download the complete datasheet for Grayhill 62H4522-H9-040C to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

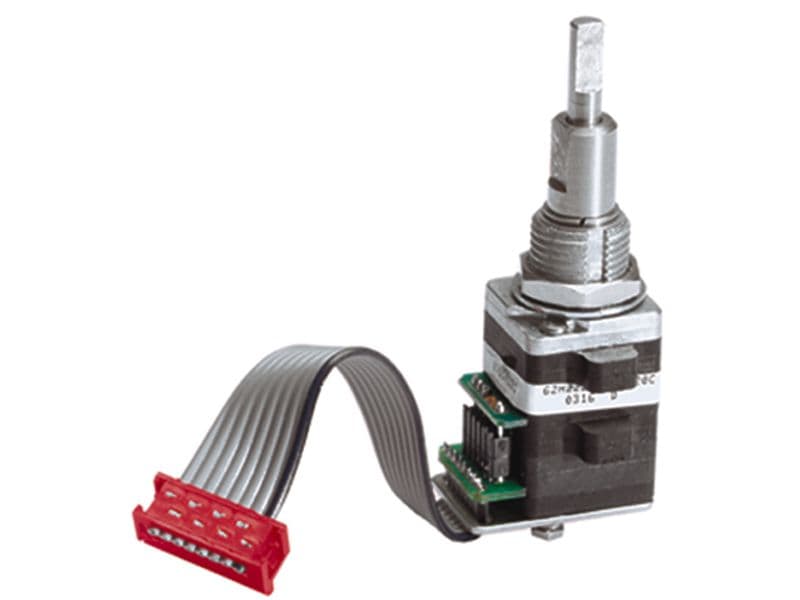

Product Images
