Rotary switch featuring 10 non-shorting positions with a 36° index angle and continuous indexing. Rated for 200mA at 220VAC (115VAC operational) and 30VDC, with a silver/cadmium contact material and gold plating. This single-deck, single-pole switch utilizes PC pin terminations for through-hole mounting and a straight, flush screwdriver actuator.
Package300
Current Rating200mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Grayhill 75AF36-01A10N technical specifications.
General
Actuator Length
0mm
Actuator Material
Phenolic
Package/Case
300
Contact Material
Silver, Cadmium
Contact Plating
Gold
Contact Style
Non-Shorting
Current Rating
200mA
Electrical Life
10000Cycles
Index Angle
36°
Index Stops
Continuous
Lead Free
Lead Free
Max Current Rating
200mA
Max Voltage Rating (AC)
220V
Max Voltage Rating (DC)
30V
Mount
Through Hole
Number of Decks
1
Number of Poles per Deck
1
Number of Positions
10
Orientation
Straight
Package Quantity
1
Series
75
Termination
PC Pins
Voltage Rating (AC)
115V
DC Rated Voltage
30V
Compliance
RoHS
Not Compliant
Datasheet
Grayhill 75AF36-01A10N Datasheet
Download the complete datasheet for Grayhill 75AF36-01A10N to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

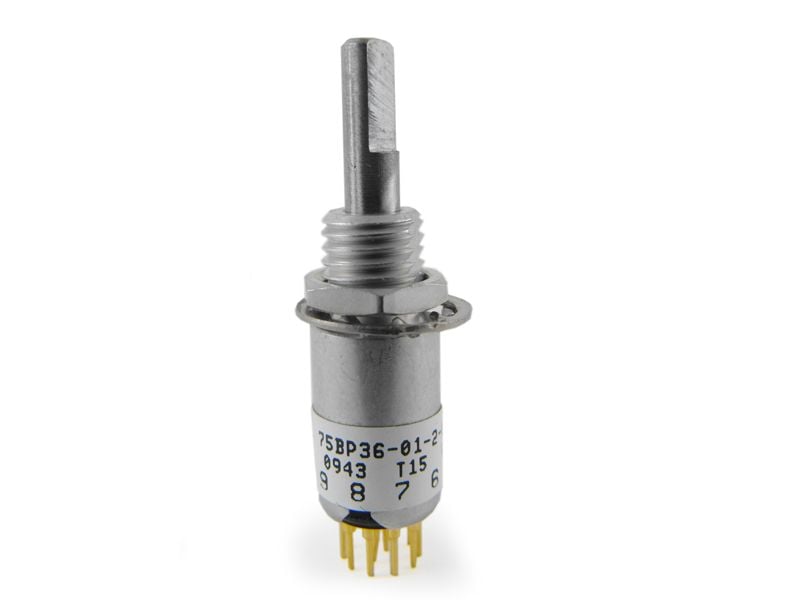

Product Images
