3-position, SPST slide DIP switch featuring a 0.15A current rating and 30VDC voltage rating. This through-hole, straight-mount component offers a 2.54mm terminal pitch and gold/nickel plated copper alloy contacts. Designed for 2000 electrical and mechanical cycles, it operates within a -40°C to 85°C temperature range and is RoHS compliant.
Current Rating150mA
MountingThrough Hole, PCB
Quick Jump:
Technical Specifications
Grayhill 78B03T technical specifications.
General
| Actuator Length | 1.27mm |
| Actuator Type | Slide (Standard) |
| Body Material | Thermoplastic |
| Contact Current Rating | 4A |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Nickel |
| Current Rating | 150mA |
| Electrical Life | 2000Cycles |
| Lead Free | Lead Free |
| Max Current Rating | 150mA |
| Max Operating Temperature | 85°C |
| Mechanical Life | 2000Cycles |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 30V |
| Mount | Through Hole, PCB |
| Number of Poles | 1 |
| Number of Positions | 3 |
| Number of Switches | 3 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| Pitch | 0.1inch |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | 78 |
| Terminal Pitch | 2.54mm |
| Termination | PC Pins |
| Throw Configuration | SPST |
| DC Rated Voltage | 30V |
| Washable | No |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 78B03T Datasheet
Download the complete datasheet for Grayhill 78B03T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

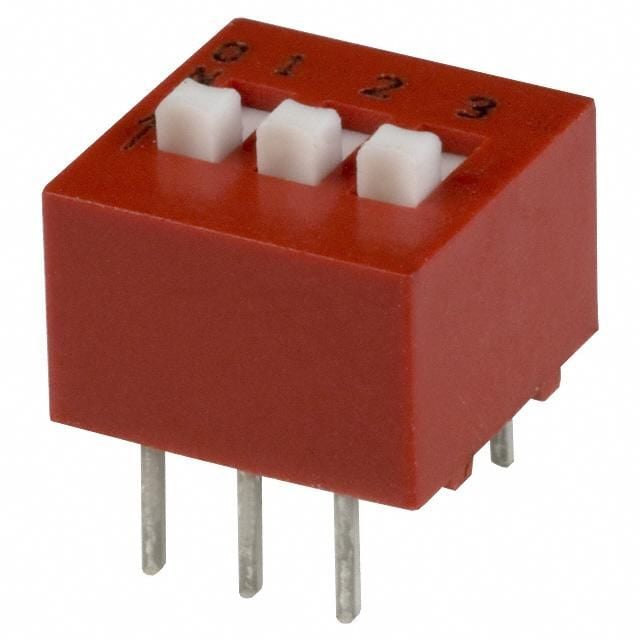

Product Images
