The Grayhill 78F03T is a 3-position slide actuator switch with a maximum operating temperature of 85°C and a minimum operating temperature of -40°C. It has a maximum current rating of 150mA and a maximum voltage rating of 30V DC. The switch is designed for through-hole mounting and is compliant with RoHS regulations. It has a mechanical life of 2000 cycles and an electrical life of 2000 cycles.
MountingThrough Hole
Quick Jump:
Technical Specifications
Grayhill 78F03T technical specifications.
General
| Actuator Type | Slide (Standard) |
| Body Material | Thermoplastic |
| Contact Material | Copper Alloy |
| Contact Plating | Gold, Nickel |
| Electrical Life | 2000Cycles |
| Lead Free | Lead Free |
| Max Current Rating | 150mA |
| Max Operating Temperature | 85°C |
| Mechanical Life | 2000Cycles |
| Min Operating Temperature | -40°C |
| Max Voltage Rating (DC) | 30V |
| Mount | Through Hole |
| Number of Positions | 3 |
| Orientation | Straight |
| Packaging | Rail/Tube |
| RoHS Compliant | Yes |
| Series | 78 |
| Termination | PC Pins |
| Throw Configuration | DPST |
| DC Rated Voltage | 30V |
| Washable | No |
Compliance
| RoHS | Compliant |
Datasheet
Grayhill 78F03T Datasheet
Download the complete datasheet for Grayhill 78F03T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

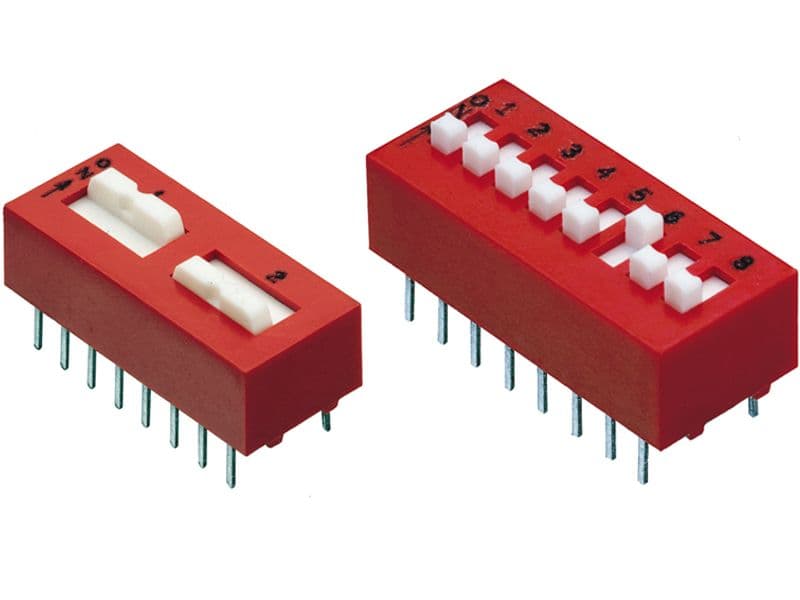

Product Images
