Grayhill
83BB1-001

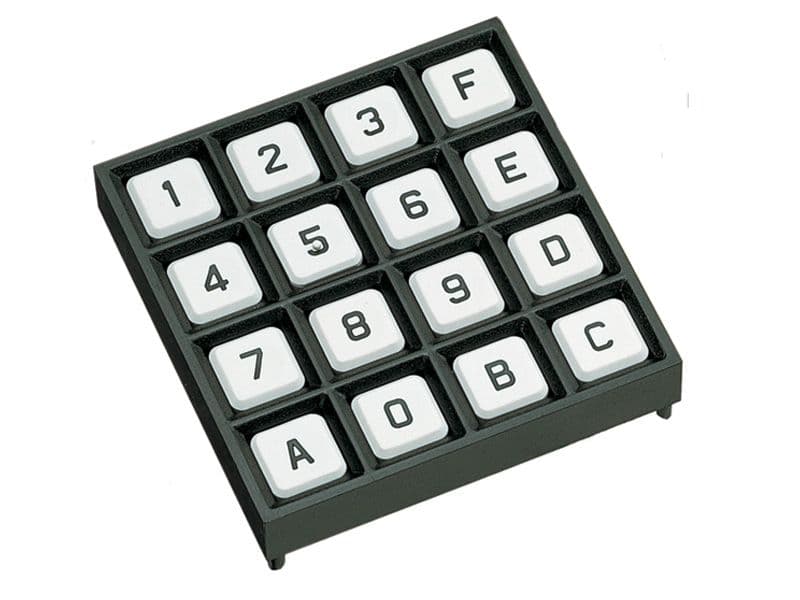

Keyboard Switch, 16 Switches, SPST, Momentary, 0.01A, 24VDC, Solder Terminal, Through Hole-straight,
Current Rating10mA
MountingPanel, Front
Quick Jump:
Technical Specifications
Grayhill 83BB1-001 technical specifications.
General
Color
Black
Contact Material
Bronze
Current Rating
10mA
Depth
52.83mm
Height
12.95mm
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Length
52.83mm
Max Operating Temperature
80°C
Min Operating Temperature
-40°C
Max Voltage Rating (DC)
24V
Mount
Panel, Front
Operating Force
3.43N
Packaging
Bulk
Radiation Hardening
No
RoHS Compliant
Yes
Series
83
Compliance
RoHS
Compliant
Datasheet
Grayhill 83BB1-001 Datasheet
Download the complete datasheet for Grayhill 83BB1-001 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
