PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Grayhill 95C04A5GWT technical specifications.
General
Actuator Material
Nylon, Polyamide
Package/Case
SMD/SMT
Contact Material
Stainless Steel
Contact Plating
Silver
Illumination Type
Non-Illuminated
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
12V
Mechanical Life
50000Cycles
Mount
Surface Mount
Operating Force
320gf
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
95C
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
Gull Wing
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Grayhill 95C04A5GWT Datasheet
Download the complete datasheet for Grayhill 95C04A5GWT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

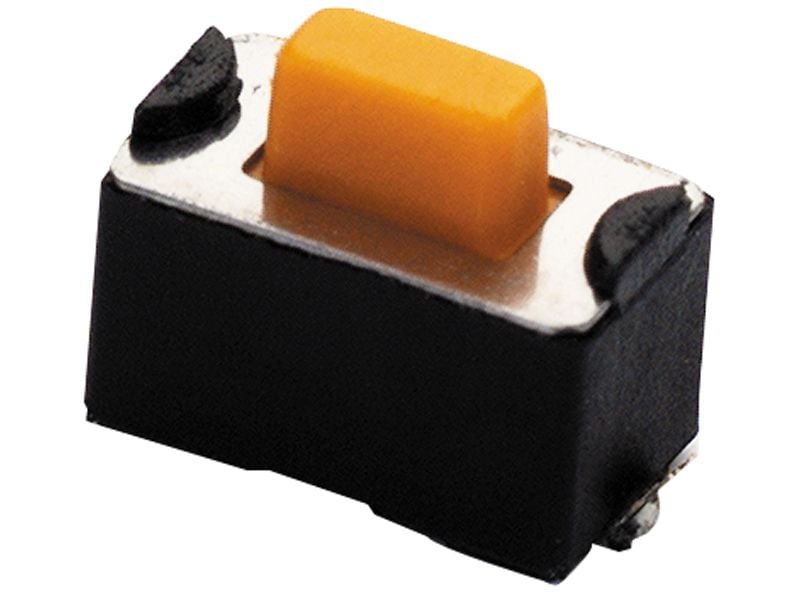

Product Images
