Grayhill
95C04B3T
Switch Tactile N.O. SPST Rectangular Button PC Pins 0.05A 12VDC 1.57N Thru-Hole Tube
MountingThrough Hole
Quick Jump:
Technical Specifications
Grayhill 95C04B3T technical specifications.
General
Actuator Material
Nylon, Polyamide
Contact Material
Stainless Steel
Contact Plating
Silver
Illumination Type
Non-Illuminated
Max Operating Temperature
70°C
Max Voltage Rating (DC)
12V
Mechanical Life
50000Cycles
Min Operating Temperature
-25°C
Mount
Through Hole
Operating Force
160gf
Packaging
Rail/Tube
Radiation Hardening
No
RoHS Compliant
Yes
Series
95C
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pin
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Grayhill 95C04B3T Datasheet
Download the complete datasheet for Grayhill 95C04B3T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

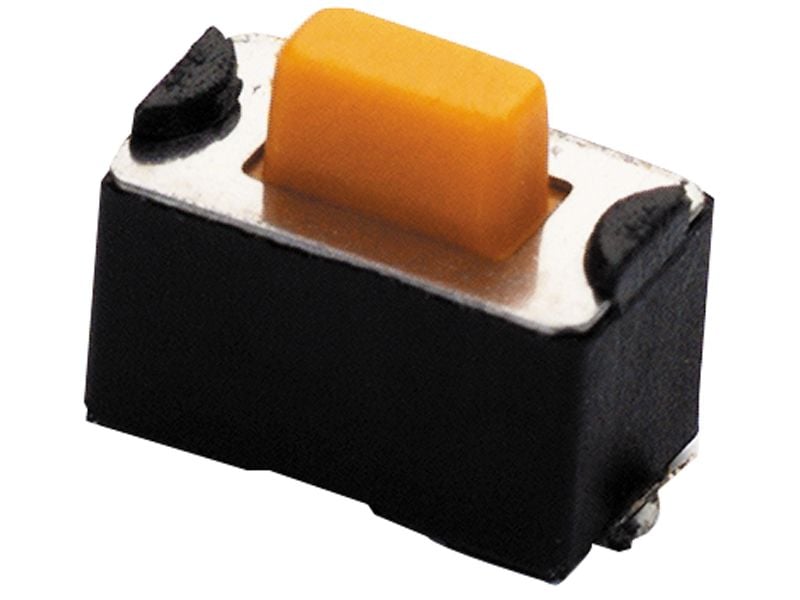

Product Images
