SPST tactile switch featuring a non-illuminated, round yellow nylon actuator. This through-hole component offers a 5.1N operating force and 0.25mm travel, with stainless steel contacts plated in silver for reliable performance. Rated for 50mA at 12VDC, it boasts a mechanical life of 300,000 cycles and operates within a temperature range of -25°C to 70°C. The straight orientation and PC pin termination facilitate easy integration into PCB designs.
MountingThrough Hole
Quick Jump:
Technical Specifications
Grayhill 95C06B6T technical specifications.
General
Actuator Color
Yellow
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Contact Material
Stainless Steel
Contact Plating
Silver
Depth
6.2mm
Illumination Type
Non-Illuminated
Length
6.2mm
Max Current Rating
50mA
Max Operating Temperature
70°C
Mechanical Life
300000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
12V
Mount
Through Hole
Operating Force
5.1N
Orientation
Straight
Packaging
Bulk
RoHS Compliant
Yes
Series
95C
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
PC Pins
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Grayhill 95C06B6T Datasheet
Download the complete datasheet for Grayhill 95C06B6T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

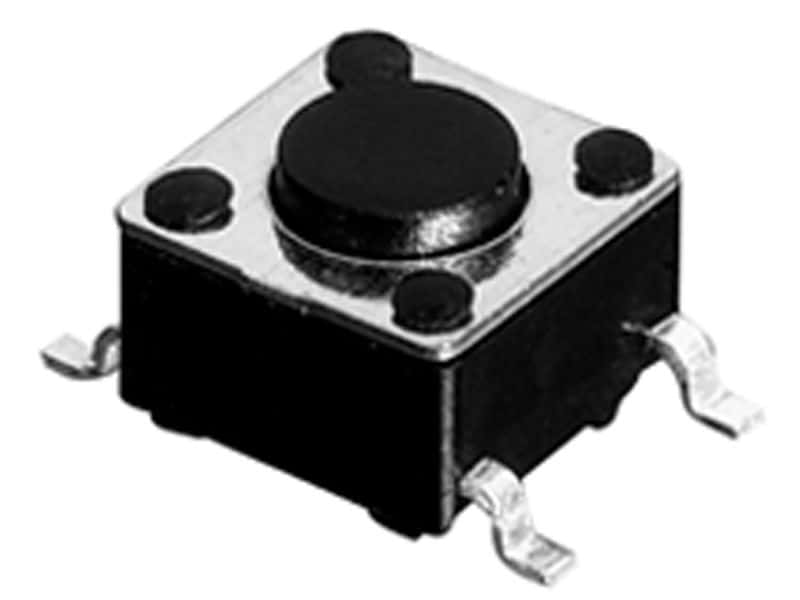

Product Images
