PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Grayhill 95C06E6GWRT technical specifications.
General
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Package/Case
SMD/SMT
Contact Material
Stainless Steel
Illumination Type
Non-Illuminated
Max Operating Temperature
70°C
Mechanical Life
300000Cycles
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
12V
Mount
Surface Mount
Operating Force
520gf
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
95C
Switch Function
Off-Mom
Switch Travel
0.25mm
Termination
Gull Wing
Throw Configuration
SPST
Compliance
RoHS
Compliant
Datasheet
Grayhill 95C06E6GWRT Datasheet
Download the complete datasheet for Grayhill 95C06E6GWRT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

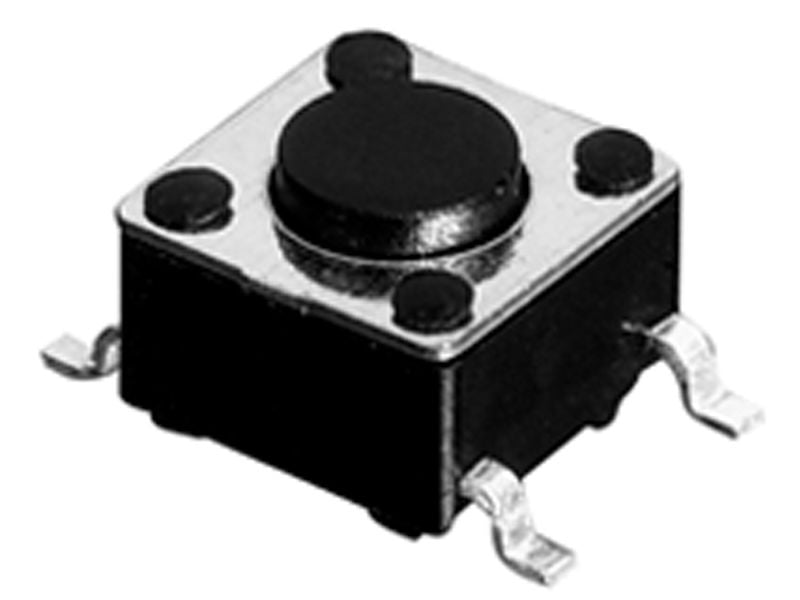

Product Images
