SPST momentary-tactile keypad switch featuring a brown nylon actuator. This surface mount component offers a 0.05A current rating at 12VDC, with a 1.57N operating force and 0.35mm travel. Constructed with stainless steel contacts plated in silver, it boasts a mechanical life of 1,000,000 cycles and operates within a -25°C to 70°C temperature range. Packaged on tape and reel for straight, gull wing termination, this RoHS compliant switch is non-illuminated.
PackageSMD/SMT
MountingSurface Mount
Quick Jump:
Technical Specifications
Grayhill 95C12A3GWRT technical specifications.
General
Actuator Color
Brown
Actuator Material
Nylon, Polyamide
Actuator Type
Standard
Package/Case
SMD/SMT
Contact Material
Stainless Steel
Contact Plating
Silver
Depth
15mm
Illumination Type
Non-Illuminated
Lead Free
Lead Free
Length
15mm
Max Current Rating
50mA
Max Operating Temperature
70°C
Min Operating Temperature
-25°C
Max Voltage Rating (DC)
12V
Mechanical Life
1000000Cycles
Mount
Surface Mount
Operating Force
1.57N
Orientation
Straight
Packaging
Tape and Reel
RoHS Compliant
Yes
Series
95C
Switch Function
Off-Mom
Switch Travel
0.35mm
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
12V
Compliance
RoHS
Compliant
Datasheet
Grayhill 95C12A3GWRT Datasheet
Download the complete datasheet for Grayhill 95C12A3GWRT to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

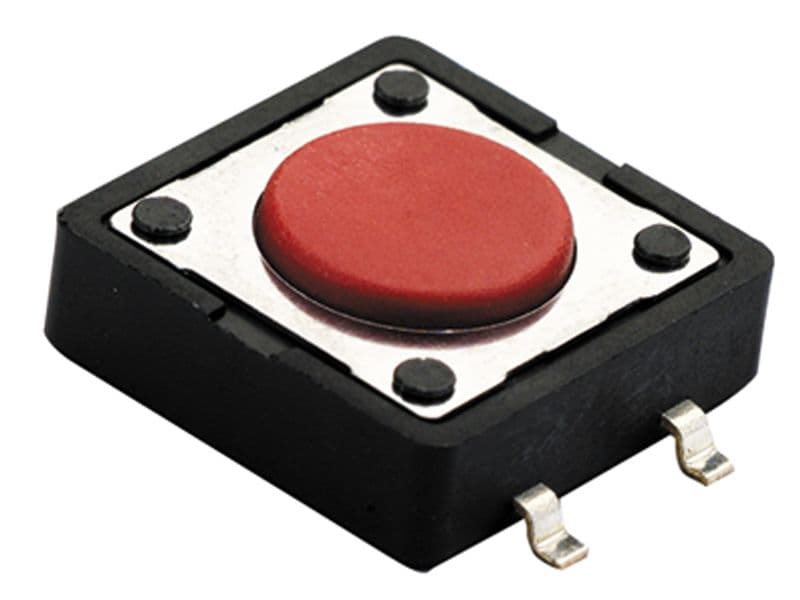

Product Images
