Surface mount SPST DIP switch featuring 4 positions and a recessed slide actuator. This component offers a 24VDC rating with a 25mA current capacity and a mechanical life of 1000 cycles. Constructed with a nylon body and gold/nickel plated copper alloy contacts, it utilizes gull wing termination for 1.27mm SMD mounting. Operating within a -40°C to 85°C temperature range, this RoHS compliant switch has a 0.05-inch pitch and a 4.5mm width.
Capacitance5pF
Current Rating25mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Grayhill 97C04T technical specifications.
General
Actuator Type
Slide (Standard)
Body Material
Nylon, Polyamide
Capacitance
5pF
Contact Material
Copper Alloy, Brass
Contact Plating
Gold, Nickel
Current Rating
25mA
Height
1.27mm
Lead Free
Lead Free
Lead/Base Style
Gull Wing
Material
Nylon, Thermoplastic
Max Current Rating
25mA
Max Operating Temperature
85°C
Max Voltage Rating (DC)
24V
Mechanical Life
1000Cycles
Min Operating Temperature
-40°C
Mount
Surface Mount
Number of Poles
1
Number of Positions
4
Number of Switches
4
Orientation
Straight
Packaging
Rail/Tube
Pitch
0.05inch
RoHS Compliant
Yes
Series
97
Termination
Gull Wing
Throw Configuration
SPST
DC Rated Voltage
24V
Washable
No
Width
4.5mm
Compliance
RoHS
Compliant
Datasheet
Grayhill 97C04T Datasheet
Download the complete datasheet for Grayhill 97C04T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

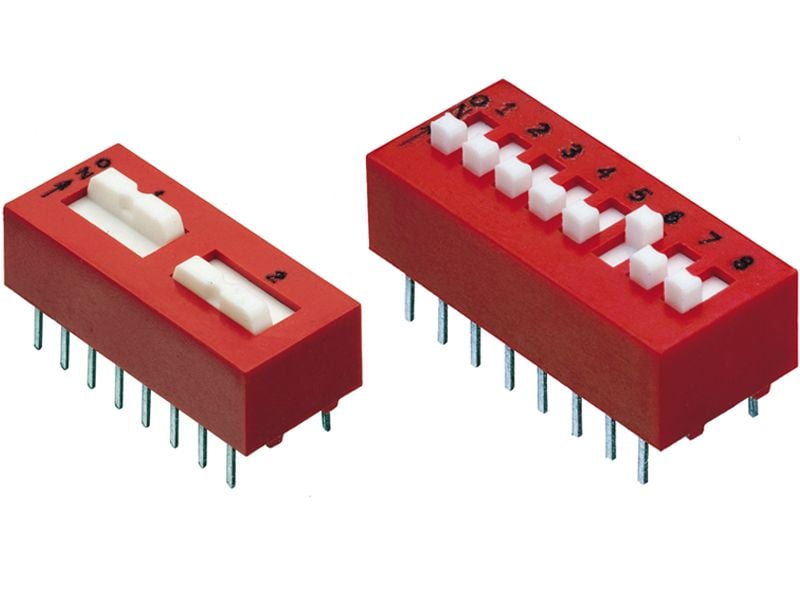

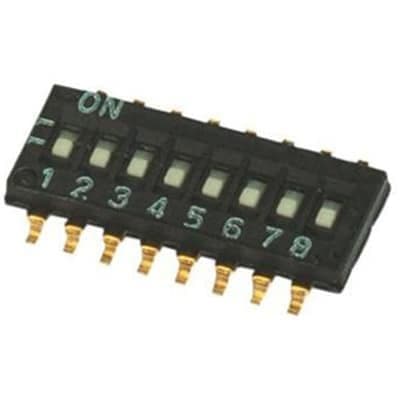

Product Images
