Hahn
EI3022022
Primary Voltage = 230 VAC / Secondary Voltage = 12 VAC / Power VA = 1.5 / Secondary Current mA = 125 / Input Frequency Min. Hz = 50 / Input Frequency Max. Hz = 60 / Termination Type = PC Pins / Length mm = 32.5 / Width mm = 27.5 / Height mm = 21.8
Power1.5
Quick Jump:
Technical Specifications
Hahn EI3022022 technical specifications.
General
Primary
1 x 230 VAC, 50...60 Hz ±10%
Secondary voltage
12 VAC(1x)
Power
1.5
Output current
125
Length
32.5
Width
27.5
Height
21.8
Ambient temperature
max.70 °C
Weight
70
Test voltage
6000
Compliance
RoHS
Compliant
Datasheet
Hahn EI3022022 Datasheet
Download the complete datasheet for Hahn EI3022022 to view detailed technical specifications.
No datasheet is available for this part.

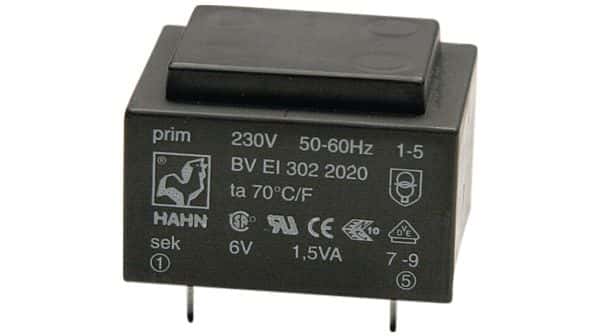

Product Images
