Hahn
EI3052844
Primary Voltage = 230 VAC / Secondary Voltage = 2x 15 VAC / Power VA = 2.3 / Secondary Current mA = 76 / Input Frequency Min. Hz = 50 / Input Frequency Max. Hz = 60 / Termination Type = PC Pins / Length mm = 32.5 / Width mm = 27.5 / Height mm = 29.8
Power2.3
Quick Jump:
Technical Specifications
Hahn EI3052844 technical specifications.
General
Primary
1 x 230 VAC, 50...60 Hz ±10%
Secondary voltage
15 VAC(2x)
Power
2.3
Output current
2x77
Length
32.5
Width
27.5
Height
29.5
Ambient temperature
max.70 °C
Weight
111
Test voltage
6000
Compliance
RoHS
Compliant
Datasheet
Hahn EI3052844 Datasheet
Download the complete datasheet for Hahn EI3052844 to view detailed technical specifications.
No datasheet is available for this part.

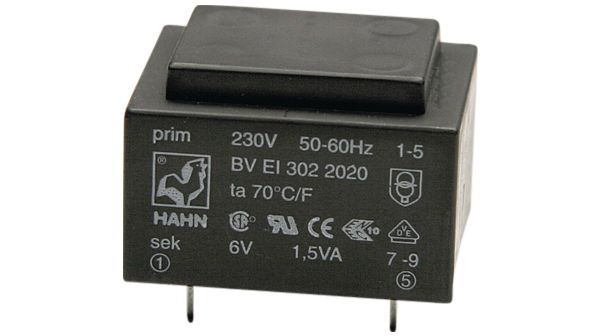

Product Images
