Hengstler
RI32-0/1000AR.14KB
HENGSTLER RI32-0/1000AR.14KB Incremental Rotary Encoder, RI 32, 4000rpm, 1000 Pulses
MountingCable
Quick Jump:
Technical Specifications
Hengstler RI32-0/1000AR.14KB technical specifications.
General
Body Diameter
30mm
Lead Length
1.5m
Load Current
10mA
Max Operating Temperature
60°C
Min Operating Temperature
-10°C
Max Output Voltage
2.5V
Min Output Voltage
500mV
Max Supply Voltage
5V
Mount
Cable
Number of Channels
3
Reach SVHC Compliant
No
Series
RI32
Compliance
RoHS
Not Compliant
Datasheet
Hengstler RI32-0/1000AR.14KB Datasheet
Download the complete datasheet for Hengstler RI32-0/1000AR.14KB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

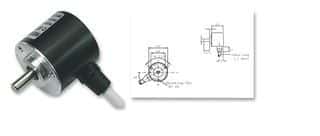

Product Images
