Herga
6753-AEJA-A000
PRESSURE SWITCH, LOW PRESSURE, TUBE; Contact Configuration:SPST-NO; Operating Pressure Min:4.368mbar; Operating Pressure Max:6.832mbar; Electrical Connection:Quick Connect; Pressure Fitting Style:4mm Spout; Sensor Mounting:Panel / Chassis; Switching Current DC Resistive:-; Switching Voltage DC Resistive:-; Product Range:-; Contact Current AC Max:0.5A; Contact Resistance:50mohm; Contact Voltage AC Max:250V; Operating Pressure Range:1inch-H2O to 16inch-H2O; Operating Temperature Max:50°C; Operating Temperature Min:-5°C
Current Rating5mA
Quick Jump:
Technical Specifications
Herga 6753-AEJA-A000 technical specifications.
General
| Current Rating | 5mA |
| Max Operating Temperature | 50°C |
| Min Operating Temperature | -5°C |
| Reach SVHC Compliant | No |
| Series | 6753 |
| Throw Configuration | SPST |
| DC Rated Voltage | 4V |
Compliance
| RoHS | Not Compliant |
Datasheet
Herga 6753-AEJA-A000 Datasheet
Download the complete datasheet for Herga 6753-AEJA-A000 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

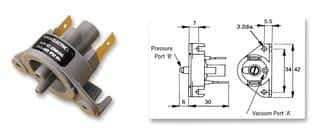

Product Images
