Technical Specifications
Honeywell 11SM303-T2 technical specifications.
General
Contact Material
Gold
Current Rating
1A
Differential Travel
0.004inch
Max Operating Temperature
125°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-55°C
Max Voltage Rating (DC)
30V
Mount
Chassis Mount, Screw, Solder
Operating Force
1.4N
Operating Position
0.33inch
Orientation
Straight
Overtravel
0.005inch
Package Quantity
20
Packaging
Bulk
Pretravel
0.02inch
RoHS Compliant
Yes
Series
SM
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
30V
Weight
2.72g
Compliance
RoHS
Compliant
Datasheet
Honeywell 11SM303-T2 Datasheet
Download the complete datasheet for Honeywell 11SM303-T2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

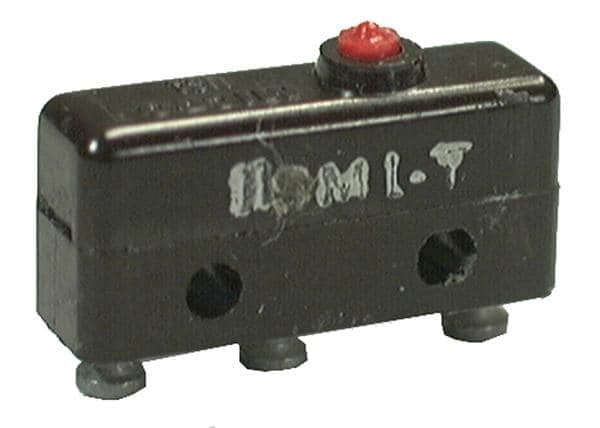

Product Images
