SPDT momentary snap acting switch with a 5A current rating and 30VDC/250VAC voltage rating. Features a plastic plunger actuator, quick connect terminal, and chassis/screw/solder mounting. Operates within a temperature range of -55°C to 125°C with a mechanical life of 10 million cycles. RoHS compliant and lead-free.
Current Rating5A
MountingChassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Honeywell 11SM401-T technical specifications.
General
Actuator Type
PIN PLUNGER
Approvals
UL, CSA
Contact Current Rating
5A
Contact Material
Silver
Contact Type
1 change-over
Current Rating
5A
Depth
6.4mm
Lead Free
Lead Free
Length
19.8mm
Max Current Rating
5A
Max Operating Temperature
125°C
Mechanical Life
10000000Cycles
Min Operating Temperature
-55°C
Mount
Chassis Mount, Screw, Solder
Number of Poles
1
Number of Positions
2
Operating Position
0.015inch
Orientation
Straight
Package Quantity
20
Packaging
Tray
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
SM
Switch Function
On-Mom
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
30V
Weight
272g
Compliance
RoHS
Compliant
Datasheet
Honeywell 11SM401-T Datasheet
Download the complete datasheet for Honeywell 11SM401-T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

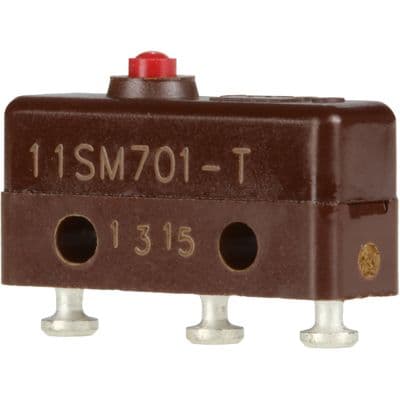

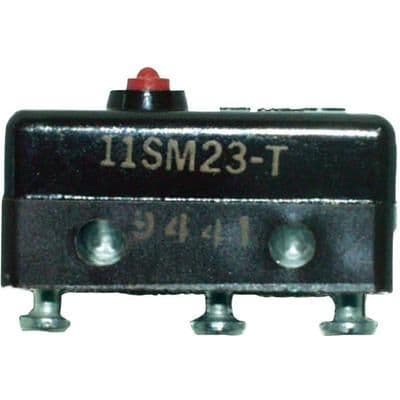

Product Images
