SPDT snap acting/limit switch with a 5A current rating and 250VAC/30VDC voltage rating. Features a plastic actuator, quick connect termination, and a straight orientation. Designed for chassis, panel, or screw mounting with a mechanical life of 10,000,000 cycles. Operates within a temperature range of -55°C to 125°C, requiring 1.39N operating force. RoHS compliant.
Current Rating5A
MountingChassis Mount, Panel, Screw
Quick Jump:
Technical Specifications
Honeywell 11SM608-H4 technical specifications.
General
Actuator Material
Plastic
Current Rating
5A
Depth
6.35mm
Length
19.84mm
Max Current Rating
5A
Max Operating Temperature
125°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
250V
Max Voltage Rating (DC)
30V
Mechanical Life
10000000Cycles
Mount
Chassis Mount, Panel, Screw
Operating Force
1.39N
Orientation
Straight
Package Quantity
20
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
SM
Switch Function
On-Mom
Termination
Quick Connect
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
30V
Weight
2.72g
Compliance
RoHS
Compliant
Datasheet
Honeywell 11SM608-H4 Datasheet
Download the complete datasheet for Honeywell 11SM608-H4 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

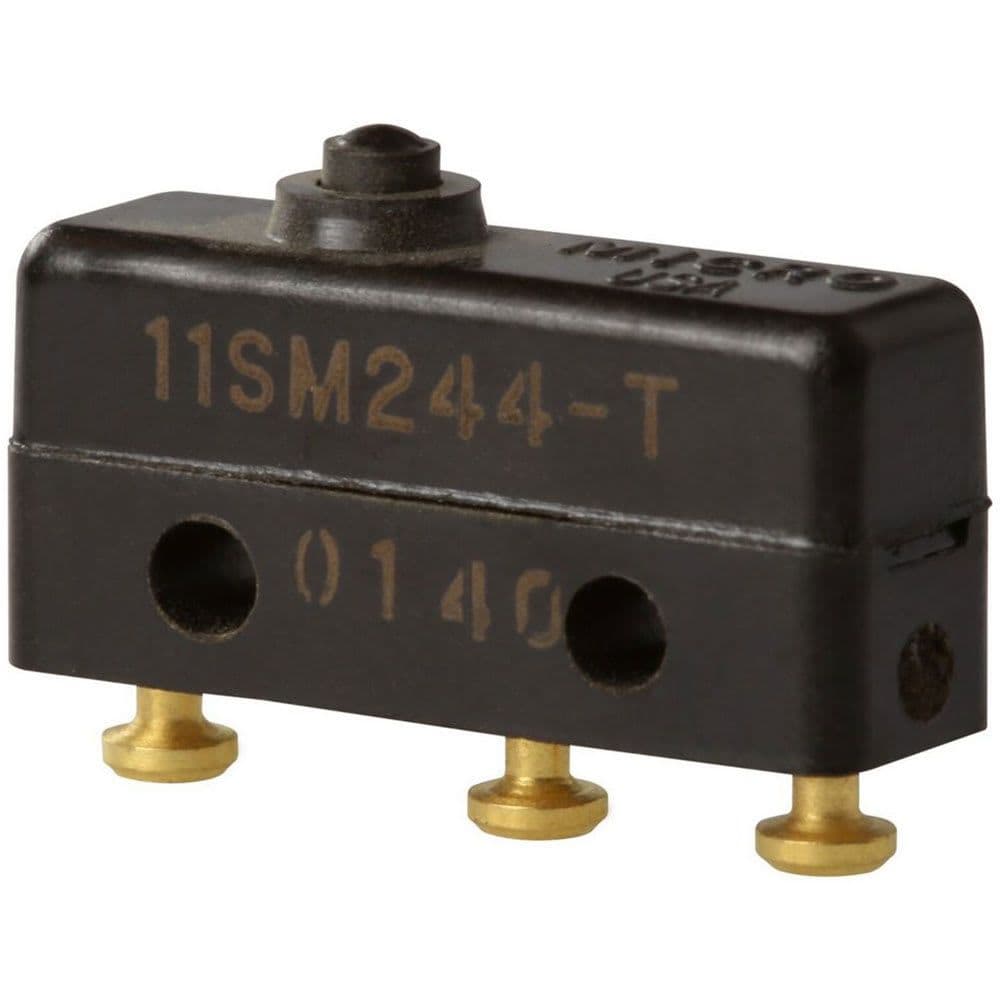

Product Images
