SPDT snap acting/limit switch with a 5A current rating and 250V AC / 30V DC voltage rating. Features a plastic actuator, PC pin termination, and through-hole mounting. Operates within a temperature range of -55°C to 125°C, with a mechanical life of 10,000,000 cycles. Includes a 0.55N operating force and a 0.02-inch pretravel. RoHS compliant.
Current Rating5A
MountingThrough Hole
Quick Jump:
Technical Specifications
Honeywell 11SM703-H2 technical specifications.
General
Actuator Material
Plastic
Current Rating
5A
Depth
6.35mm
Differential Travel
0.002inch
Length
19.84mm
Max Current Rating
5A
Max Operating Temperature
125°C
Max Voltage Rating (DC)
30V
Mechanical Life
10000000Cycles
Min Operating Temperature
-55°C
Mount
Through Hole
Operating Force
0.55N
Operating Position
0.33inch
Orientation
Straight
Overtravel
0.005inch
Package Quantity
20
Packaging
Bulk
Pretravel
0.02inch
RoHS Compliant
Yes
Series
SM
Switch Function
On-Mom
Termination
PC Pin
Throw Configuration
SPDT
Voltage Rating (AC)
250V
DC Rated Voltage
30V
Weight
2.72g
Compliance
RoHS
Compliant
Datasheet
Honeywell 11SM703-H2 Datasheet
Download the complete datasheet for Honeywell 11SM703-H2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

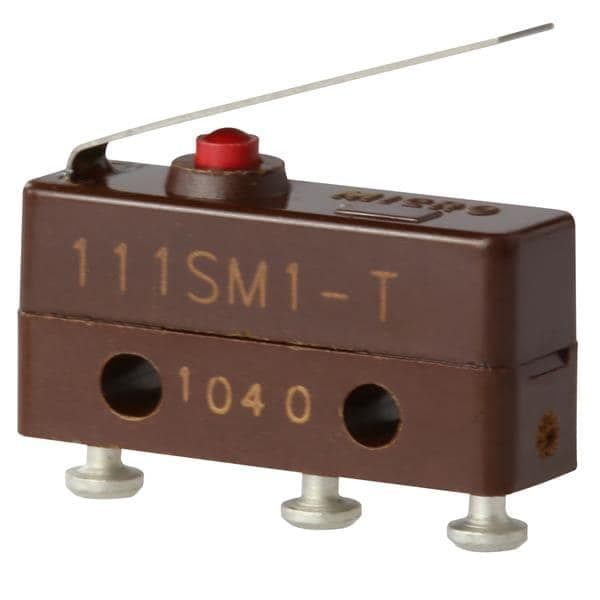

Product Images
