Technical Specifications
Honeywell 12TS95-70 technical specifications.
General
| Actuator Length | 16.51mm |
| Actuator Material | NICKEL PLATED |
| Actuator Type | Standard Round |
| Current Rating | 20A |
| Height | 27.4mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -54°C |
| Max Voltage Rating (AC) | 277V |
| Mount | Bushing |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | TS |
| Switch Function | Mom-On-Mom |
| Termination | Quick Connect |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| Weight | 45.36g |
| Width | 15.2mm |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 12TS95-70 Datasheet
Download the complete datasheet for Honeywell 12TS95-70 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

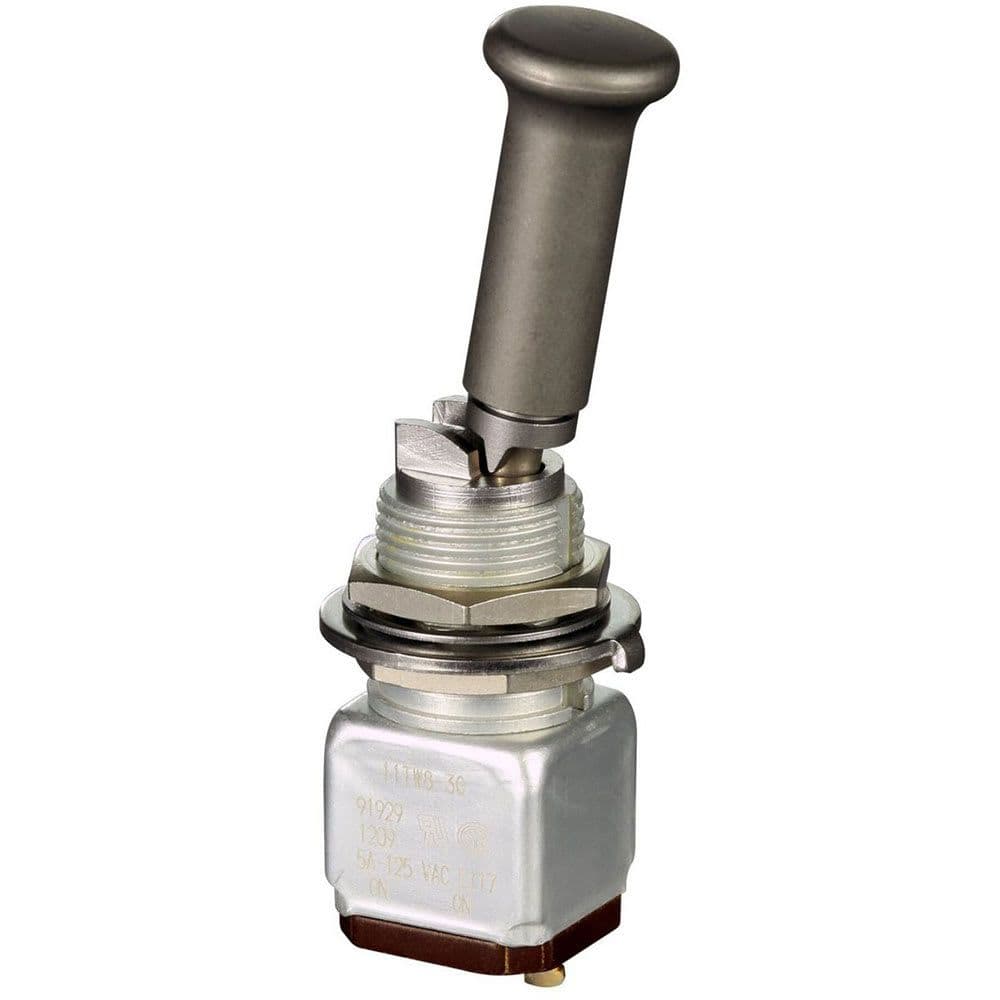

Product Images
