Technical Specifications
Honeywell 12TW29-10 technical specifications.
General
| Actuator Length | 12.7mm |
| Contact Plating | Silver |
| Current Rating | 5A |
| Illumination Type | Non-Illuminated |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -65°C |
| Max Voltage Rating (AC) | 125V |
| Mount | Bushing |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | Environment Proof |
| RoHS Compliant | Yes |
| Series | TW |
| Switch Function | On-On-On |
| Termination | Solder |
| Throw Configuration | DPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 28V |
| Weight | 113.4g |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 12TW29-10 Datasheet
Download the complete datasheet for Honeywell 12TW29-10 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

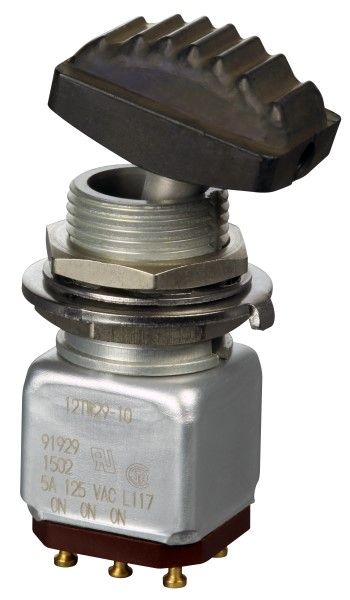

Product Images
