Honeywell
1LS19
Snap Acting/Limit Switch, SPDT, Momentary, Screw Terminal, Steel Roller Lever Actuator, Panel Mount,
Package120
Current Rating10A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell 1LS19 technical specifications.
General
Actuator Type
Rotary
Package/Case
120
Contact Type
Snap Action
Current Rating
10A
Depth
28.7mm
Diameter
7.2mm
Length
102.9mm
Max Operating Temperature
71°C
Min Operating Temperature
-29°C
Mount
Chassis Mount, Screw
Number of Poles
1
Number of Positions
2
Orientation
Right Angle
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LS
Switch Function
On-Mom
Termination
Conduit
Throw Configuration
SPDT
Voltage Rating (AC)
480V
Width
30.2mm
Compliance
RoHS
Compliant
Datasheet
Honeywell 1LS19 Datasheet
Download the complete datasheet for Honeywell 1LS19 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

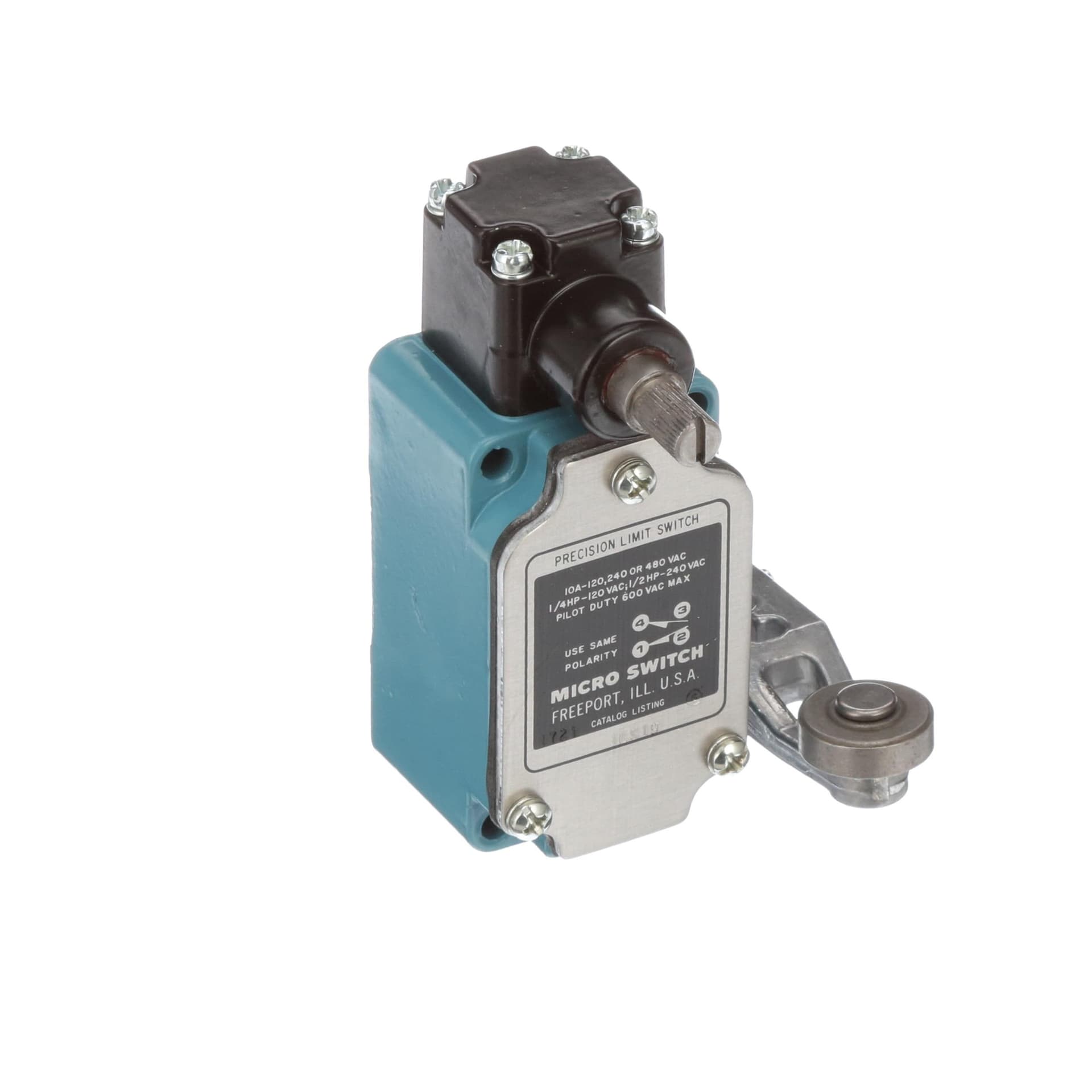

Product Images
