SPST toggle switch featuring a non-illuminated, standard round lever with nickel-plated actuator. Rated for 20A at 125VAC and 250VDC, with a 372.85VA rating. Offers panel mounting with threads and screw termination. Operates within a temperature range of -65°C to 71°C. Approvals include UL, CSA, and CE, with RoHS compliance.
Current Rating20A
MountingPanel, Bushing
Quick Jump:
Technical Specifications
Honeywell 1TL1-6 technical specifications.
General
| Actuator Length | 17.27mm |
| Actuator Material | NICKEL PLATED |
| Actuator Type | Standard Round |
| Approvals | UL, CSA, CE |
| Contact Material | Silver, Cadmium |
| Contact Plating | Silver, Cadmium |
| Current Rating | 20A |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -65°C |
| Max Voltage Rating (DC) | 250V |
| Mount | Panel, Bushing |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Orientation | Straight |
| Packaging | Bulk |
| Ratings | Environment Sealed |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Series | TL |
| Switch Function | Off-Mom |
| Termination | Screw |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 1TL1-6 Datasheet
Download the complete datasheet for Honeywell 1TL1-6 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

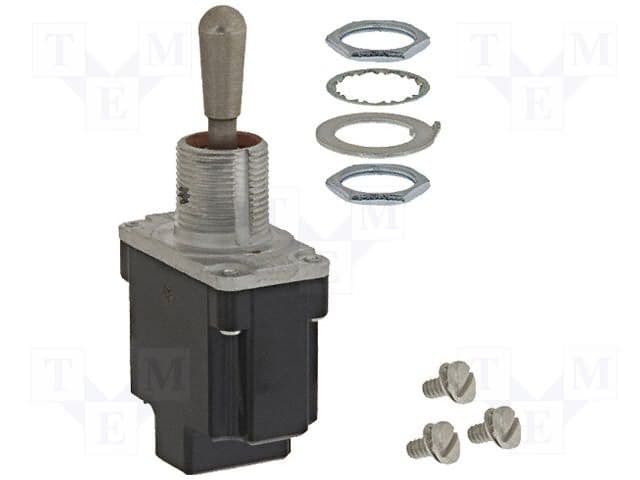

Product Images
