Honeywell
1TL1-7E
Toggle Switch, SPDT, (on)-off-(on), Momentary, 15A, 28VDC, Screw Terminal, Locking Lever Actuator, Panel Mount-threaded,
Current Rating20A
MountingBushing
Quick Jump:
Technical Specifications
Honeywell 1TL1-7E technical specifications.
General
Actuator Length
26.67mm
Actuator Material
NICKEL PLATED
Actuator Type
LOCKING LEVER
Approvals
UL, CSA, CE
Contact Material
Silver, Cadmium
Contact Plating
Silver, Cadmium
Current Rating
20A
Illumination Type
Non-Illuminated, Illuminated
Max Operating Temperature
71°C
Min Operating Temperature
-65°C
Max Voltage Rating (DC)
250V
Mount
Bushing
Orientation
Straight
Packaging
Bulk
Ratings
Environment Sealed
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
TL
Switch Function
Mom-Off-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
250V
Compliance
RoHS
Compliant
Datasheet
Honeywell 1TL1-7E Datasheet
Download the complete datasheet for Honeywell 1TL1-7E to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

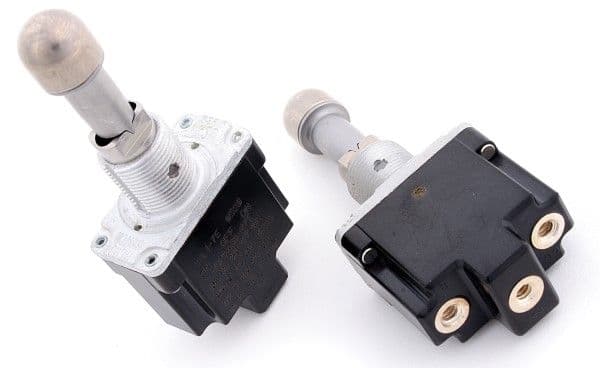

Product Images
