Differential pressure sensor with a 0psi to 30psi operating range, featuring 1% accuracy and linearity. This board mount component utilizes a Wheatstone bridge analog output, delivering 330mV at 10V operating voltage. It operates from -40°C to 85°C and is housed in a lead-free SIP package with a 2.5mm lead pitch for through-hole mounting. Key specifications include 5kR input impedance, 6kR input resistance, and a 1ms response time.
PackageSIP
Current2mA
Voltage Rating10V
MountingThrough Hole
Quick Jump:
Technical Specifications
Honeywell 24PCDFA6D technical specifications.
General
Accuracy
1%
Package/Case
SIP
Input Impedance
5kR
Input Resistance
6kR
Lead Free
Lead Free
Lead Pitch
2.5mm
Linearity
1%
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Pressure
60PSI
Max Supply Voltage (DC)
12V
Max Supply Voltage
12V
Mount
Through Hole
Operating Pressure
30PSI
Operating Supply Voltage
10V
Output
ANALOG
Output Type
Wheatstone Bridge, Analog
Output Voltage
330mV
Package Quantity
5
Port Style
Barbless
Pressure Type
Differential
Reach SVHC Compliant
No
Response Time
1ms
RoHS Compliant
Yes
Series
24PC
Supply Current
2mA
Termination
PC Pin
Voltage Rating
10V
DC Rated Voltage
10V
Weight
2g
Width
12.7mm
Compliance
RoHS
Compliant
Datasheet
Honeywell 24PCDFA6D Datasheet
Download the complete datasheet for Honeywell 24PCDFA6D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

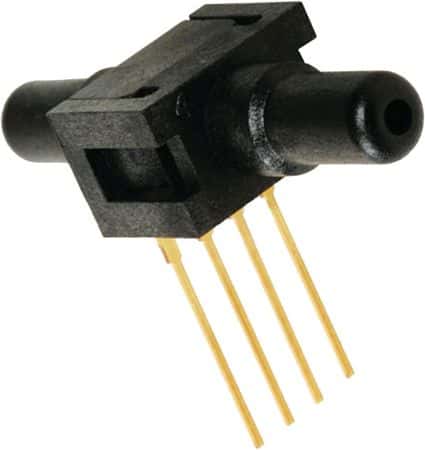

Product Images
