Honeywell
24PCFFA6G
Peizoresistive Sensor, Gage, 0Psi Min, 100Psi Max, Rectangular, Through Hole Mount,
PackageSIP
MountingThrough Hole
Quick Jump:
Technical Specifications
Honeywell 24PCFFA6G technical specifications.
General
Accuracy
1%
Package/Case
SIP
Input Resistance
6kR
Linearity
1%
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Pressure
200PSI
Max Supply Voltage (DC)
12V
Max Supply Voltage
12V
Mount
Through Hole
Nominal Supply Current
2mA
Operating Pressure
100PSI
Operating Supply Voltage
10V
Output Type
Wheatstone Bridge, Analog
Package Quantity
5
Port Style
Barbless
Pressure Type
Compound
Response Time
1ms
RoHS Compliant
Yes
Series
24PC
Termination
PC Pin
DC Rated Voltage
10V
Weight
2g
Compliance
RoHS
Compliant
Datasheet
Honeywell 24PCFFA6G Datasheet
Download the complete datasheet for Honeywell 24PCFFA6G to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

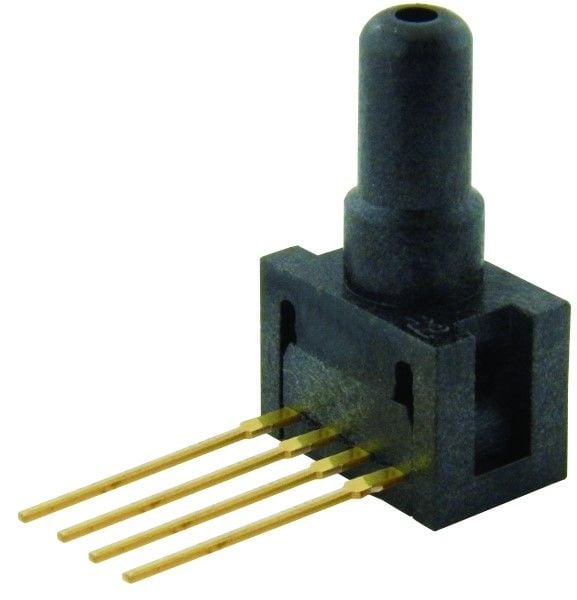

Product Images
