Honeywell
3AC5
Snap Acting/Limit Switch, SPDT, Momentary, Screw Terminal, Rod Type Actuator, Panel Mount,
Current Rating15A
MountingChassis Mount
Quick Jump:
Technical Specifications
Honeywell 3AC5 technical specifications.
General
Actuator Type
Push-Pull Plunger
Current Rating
15A
Max Operating Temperature
149°C
Min Operating Temperature
-18°C
Mount
Chassis Mount
Number of Poles
1
Number of Positions
2
Operating Force
1814gf
Operating Position
516mm
Package Quantity
5
Packaging
Bulk
RoHS Compliant
Yes
Sealable
No (Without)
Series
AC
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
4173g
Compliance
RoHS
Compliant
Datasheet
Honeywell 3AC5 Datasheet
Download the complete datasheet for Honeywell 3AC5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

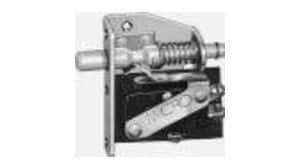

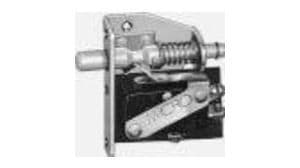

Product Images
