4PDT toggle switch featuring a non-illuminated, standard round lever with nickel-plated actuator. Rated for 20A max at 277VAC and 250VDC, with a 15A contact current rating and silver, cadmium, gold contact material. Panel mountable with threaded bushing, offering straight orientation and screw termination. Operating temperature range from -65°C to 71°C, this RoHS compliant and lead-free component is environment-proof and holds UL, CSA, and CE approvals.
Current Rating15A
MountingBushing
Quick Jump:
Technical Specifications
Honeywell 4TL1-3 technical specifications.
General
| Actuator Length | 17.27mm |
| Actuator Material | NICKEL PLATED |
| Actuator Type | Standard Round |
| Approvals | UL, CSA, CE |
| Contact Current Rating | 15A |
| Contact Material | Silver, Cadmium, Gold |
| Contact Plating | Silver, Cadmium |
| Current Rating | 15A |
| Depth | 41.6mm |
| Illumination Type | Non-Illuminated, Illuminated |
| Lead Free | Lead Free |
| Length | 33.5mm |
| Max Current Rating | 20A |
| Max Operating Temperature | 71°C |
| Min Operating Temperature | -65°C |
| Max Voltage Rating (AC) | 277V |
| Max Voltage Rating (DC) | 250V |
| Mount | Bushing |
| Number of Poles | 4 |
| Number of Positions | 2 |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | Environment Proof |
| RoHS Compliant | Yes |
| Series | TL |
| Switch Function | On-On |
| Termination | Screw |
| Throw Configuration | 4PDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 250V |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell 4TL1-3 Datasheet
Download the complete datasheet for Honeywell 4TL1-3 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

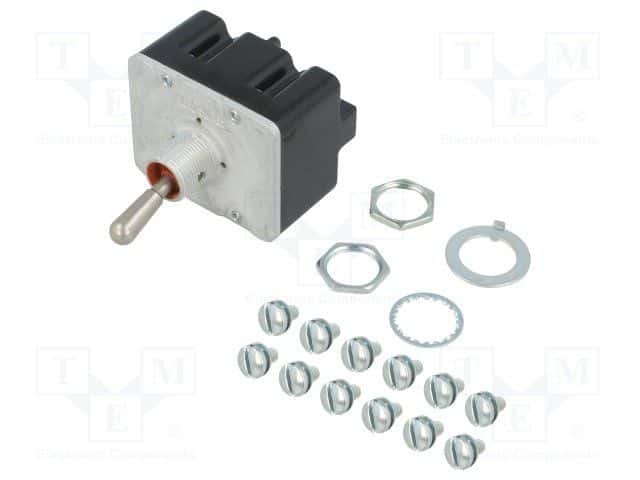

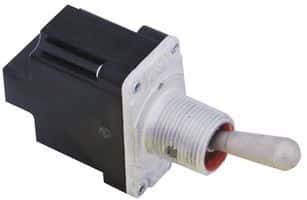

Product Images
