This steel SPST on-mom switch has a maximum current rating of 5A and a maximum voltage rating of 250V AC and 30V DC. It operates within a temperature range of -53°C to 105°C and features a throw configuration of SPST. The switch is available in a bulk packaging and is not RoHS compliant. It has a weight of 14.46g and a length of 22.25mm, with a depth of 8.79mm and a maximum operating force of 708gf.
Current Rating5A
MountingChassis Mount, Panel, Screw, Wire
Quick Jump:
Technical Specifications
Honeywell 6SE801 technical specifications.
General
| Actuator Material | Steel |
| Current Rating | 5A |
| Depth | 8.79mm |
| Length | 22.25mm |
| Max Current Rating | 5A |
| Max Operating Temperature | 105°C |
| Min Operating Temperature | -53°C |
| Max Voltage Rating (AC) | 250V |
| Max Voltage Rating (DC) | 30V |
| Mount | Chassis Mount, Panel, Screw, Wire |
| Operating Force | 708gf |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Ratings | Waterproof |
| RoHS Compliant | No |
| Series | SE |
| Switch Function | On-Mom |
| Termination | Wire Leads |
| Throw Configuration | SPST |
| Voltage Rating (AC) | 250V |
| DC Rated Voltage | 30V |
| Weight | 14.46g |
Compliance
| RoHS | Not Compliant |
Datasheet
Honeywell 6SE801 Datasheet
Download the complete datasheet for Honeywell 6SE801 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

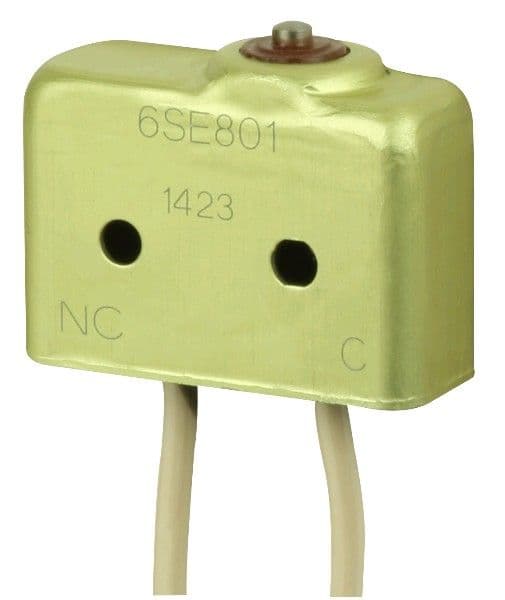

Product Images
