Honeywell
914CE18-AQ1
Snap Acting/Limit Switch, SPDT, Momentary, 3A, 250VDC, 4mm, Connector Terminal, Top Plunger Actuator, Panel Mount,
Current Rating3A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell 914CE18-AQ1 technical specifications.
General
Approvals
UL, CSA, CE
Contact Plating
Silver
Current Rating
3A
Depth
16mm
Height
63mm
Length
40.1mm
Max Operating Temperature
105°C
Mechanical Life
10000000Cycles
Min Operating Temperature
0°C
Mount
Chassis Mount, Screw
Operating Force
22.5N
Orientation
Straight
Overtravel
30mm
Pretravel
0.02inch
Ratings
IP66, Water Resistant, Dust Tight
RoHS Compliant
Yes
Series
914CE
Switch Function
On-Mom
Termination
Connector
Throw Configuration
SPDT
Voltage Rating (AC)
125V
Compliance
RoHS
Compliant
Datasheet
Honeywell 914CE18-AQ1 Datasheet
Download the complete datasheet for Honeywell 914CE18-AQ1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

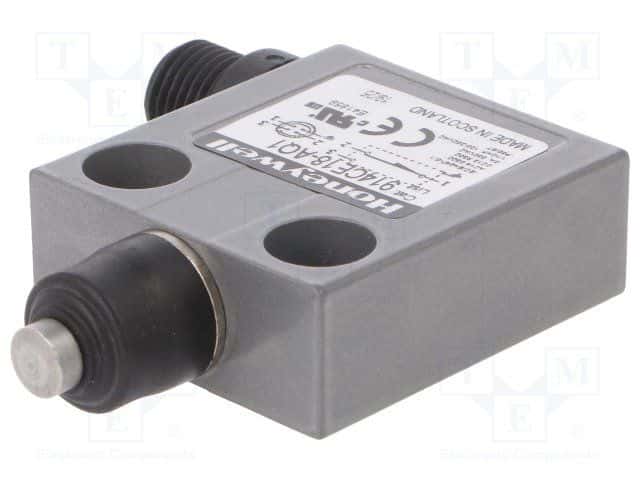

Product Images
