Honeywell
924CE2-S15
Switch Limit N.C. SPST Top Roller Plunger Screw Mount 3A 240VAC 250VDC Linear Cable
Current Rating10A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell 924CE2-S15 technical specifications.
General
Approvals
CSA, CE
Current Rating
10A
Depth
16mm
Length
40mm
Max Operating Temperature
70°C
Min Operating Temperature
0°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
250V
Mechanical Life
10000000Cycles
Mount
Chassis Mount, Screw
Operating Position
1.193inch
Orientation
Straight
Overtravel
0.039inch
Package Quantity
1
Packaging
Bulk
Pretravel
0.087inch
Ratings
IP66, Water Resistant, Dust Tight
Series
924CE
Switch Function
On-Mom
Termination
Cable Leads
Throw Configuration
SPDT, SPST
Voltage Rating (AC)
250V
Compliance
RoHS
Compliant
Datasheet
Honeywell 924CE2-S15 Datasheet
Download the complete datasheet for Honeywell 924CE2-S15 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

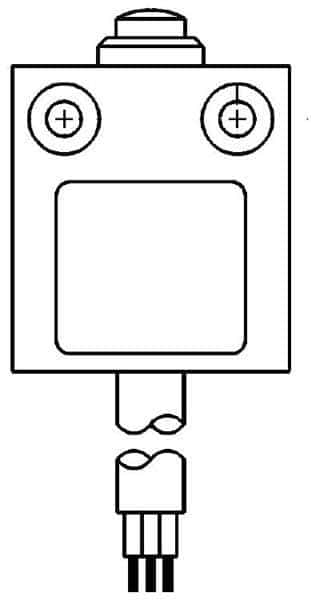

Product Images
