Honeywell
AML21JBB3AB
Switch Push Button N.O./N.C. SPDT Square Button Alternate Contact Through Hole/Panel Mount PC Pins/Push-On
Current Rating2A
MountingPanel, Snap in, Through Hole
Quick Jump:
Technical Specifications
Honeywell AML21JBB3AB technical specifications.
General
| Contact Material | Silver |
| Current Rating | 2A |
| Electrical Life | 25000Cycles |
| Illumination Type | Lamp |
| Mechanical Life | 25000Cycles |
| Mount | Panel, Snap in, Through Hole |
| Orientation | Straight |
| Package Quantity | 1 |
| Packaging | Bulk |
| Series | AML21 |
| Switch Function | On-On |
| Termination | PC Pins |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 24V |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell AML21JBB3AB Datasheet
Download the complete datasheet for Honeywell AML21JBB3AB to view detailed technical specifications.
No datasheet is available for this part.

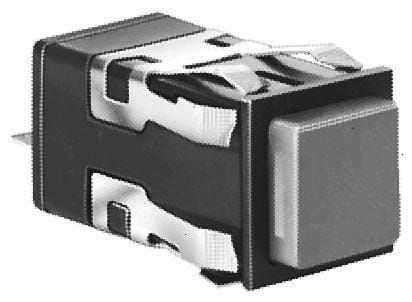

Product Images
