Honeywell
ASDXAVX005PGAA5
Strain Guage Sensor, Gage, Rectangular, Through Hole Mount, ROHS COMPLIANT, PACKAGE-8
PackageDIP
Current2.5mA
Voltage Rating5V
MountingPCB, Through Hole
Quick Jump:
Technical Specifications
Honeywell ASDXAVX005PGAA5 technical specifications.
General
Accuracy
2%
Package/Case
DIP
Max Operating Temperature
105°C
Min Operating Temperature
-20°C
Max Pressure
10PSI
Max Supply Current
3.5mA
Max Supply Voltage
5.25V
Min Supply Voltage
4.75V
Mount
PCB, Through Hole
Operating Pressure
5PSI
Operating Supply Voltage
5V
Output Type
Analog Voltage, Analog
Port Style
Barbless
Pressure Type
Vented Gauge
Primary Type
PRESSURE SENSOR
Reach SVHC Compliant
Unknown
Response Time
1ms
RoHS Compliant
Yes
Series
ASDX
Supply Current
2.5mA
Termination
PC Pin
Voltage Rating
5V
DC Rated Voltage
5V
Compliance
RoHS
Compliant
Datasheet
Honeywell ASDXAVX005PGAA5 Datasheet
Download the complete datasheet for Honeywell ASDXAVX005PGAA5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

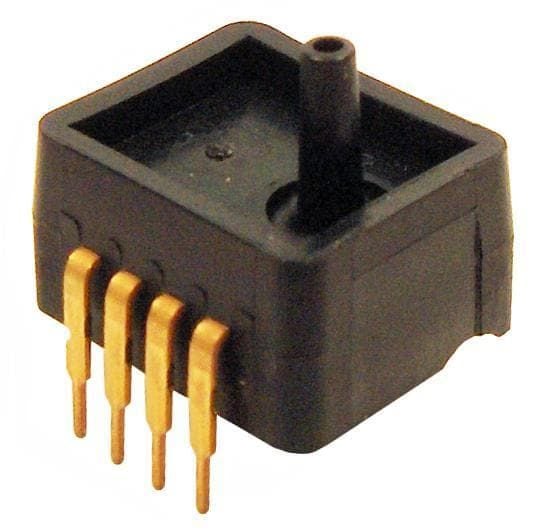

Product Images
