Honeywell
BFL1-BP1
Snap Acting/Limit Switch, SPDT, Momentary, 0.5A, 125VDC, 3.05mm, Screw Terminal, Steel Plunger Actuator, Panel Mount
Current Rating11A
MountingScrew
Quick Jump:
Technical Specifications
Honeywell BFL1-BP1 technical specifications.
General
Current Rating
11A
Max Current Rating
11A
Max Operating Temperature
71°C
Min Operating Temperature
-32°C
Max Voltage Rating (AC)
277V
Max Voltage Rating (DC)
250V
Mount
Screw
Operating Force
1223N
Orientation
Straight
RoHS Compliant
Yes
Termination
Conduit
Throw Configuration
SPDT
Voltage Rating (AC)
277V
Compliance
RoHS
Compliant
Datasheet
Honeywell BFL1-BP1 Datasheet
Download the complete datasheet for Honeywell BFL1-BP1 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

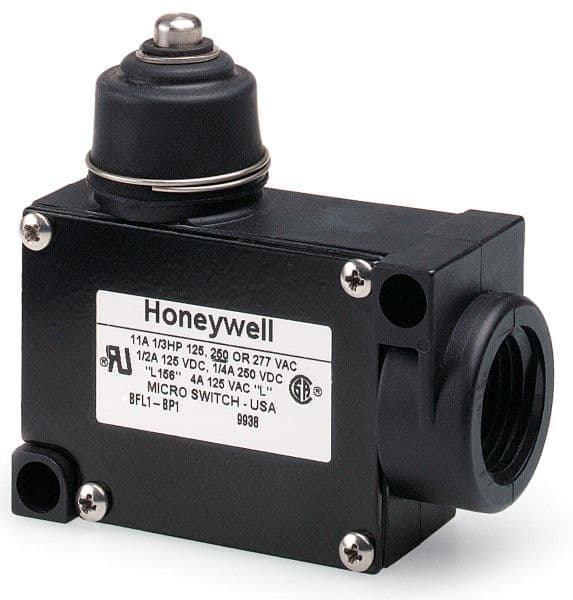

Product Images
