SPDT momentary snap acting switch featuring a steel roller lever actuator with a 1.52mm differential travel. Rated for 15A at 125VDC, this switch offers a mechanical life of 20,000,000 cycles and an electrical life of 100,000 cycles. It operates within a temperature range of -55°C to 85°C and includes screw terminals for chassis mounting. The switch is RoHS compliant and CSA/CE approved.
Package125
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RL2-A2 technical specifications.
General
Actuator Length
4949mm
Actuator Type
ROLLER LEVER
Approvals
CSA, CE
Package/Case
125
Contact Current Rating
15A
Contact Material
Silver
Current Rating
15A
Depth
17.5mm
Differential Travel
127mm
Electrical Life
100000Cycles
Lead Free
Lead Free
Length
49.3mm
Material
Plastic
Max Current Rating
15A
Max Operating Temperature
85°C
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Mount
Chassis Mount, Screw
Number of Poles
1
Number of Positions
2
Operating Force
139N
Operating Position
0.03inch
Orientation
Straight
Overtravel
152mm
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
286g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2RL2-A2 Datasheet
Download the complete datasheet for Honeywell BZ-2RL2-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

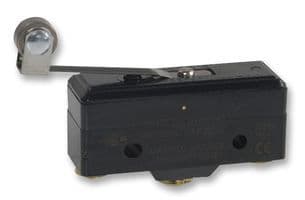

Product Images
