SPDT momentary snap action switch featuring a steel roller actuator and screw terminals for panel mounting. Rated for 15A at 125VDC, it offers a mechanical life of 20,000,000 cycles and an electrical life of 100,000 cycles. Operating force is 361N with a differential travel of 0.002 inches. Constructed with silver contacts and a plastic housing, this RoHS compliant switch operates within a temperature range of -55°C to 85°C.
Current Rating15A
MountingPanel, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RQ18-A2 technical specifications.
General
Actuator Material
Steel
Actuator Type
PLUNGER
Approvals
UL, CSA
Contact Current Rating
15A
Contact Material
Silver
Current Rating
15A
Depth
17.5mm
Differential Travel
0.002inch
Electrical Life
100000Cycles
Lead Free
Lead Free
Length
49.3mm
Material
Plastic
Max Current Rating
15A
Max Operating Temperature
85°C
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Mount
Panel, Screw
Operating Force
361N
Operating Position
0.045inch
Orientation
Straight
Overtravel
356mm
Package Quantity
5
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
635g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2RQ18-A2 Datasheet
Download the complete datasheet for Honeywell BZ-2RQ18-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

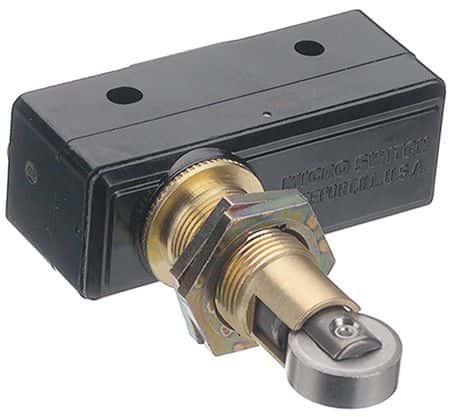

Product Images
