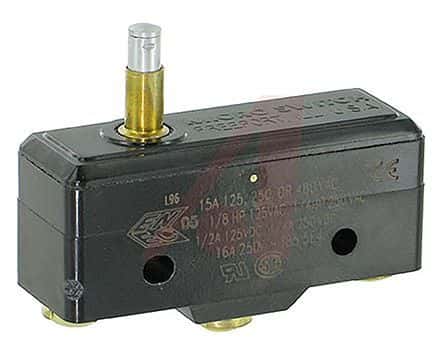

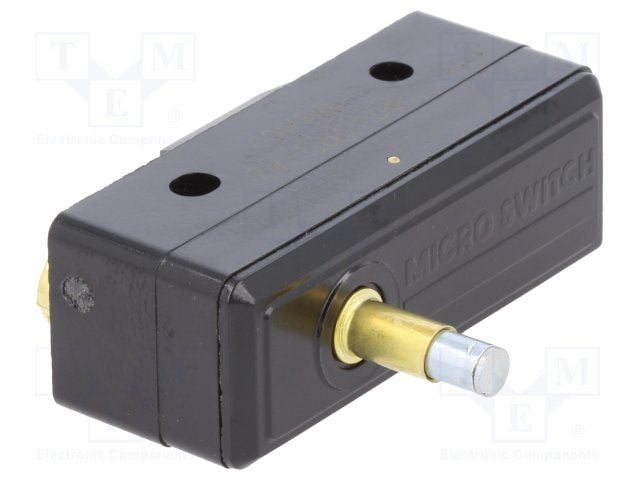

SPDT momentary snap acting/limit switch featuring a steel plunger actuator and screw terminals. Rated for 15A at 125VDC, with a 0.5A, 125VDC rating also specified. Offers a 1.9mm differential travel and a 0.02-inch operating position. Constructed with silver contacts and a plastic housing, this RoHS compliant switch operates between -55°C and 85°C with a mechanical life of 20,000,000 cycles. Chassis and screw mounting options are available.
Package125
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RS-A2 technical specifications.
General
| Actuator Material | Steel |
| Actuator Type | PLUNGER |
| Approvals | UL, CSA |
| Package/Case | 125 |
| Contact Current Rating | 15A |
| Contact Material | Silver |
| Current Rating | 15A |
| Depth | 17.5mm |
| Differential Travel | 0.002inch |
| Electrical Life | 100000Cycles |
| Lead Free | Lead Free |
| Length | 49.3mm |
| Material | Plastic |
| Max Current Rating | 15A |
| Max Operating Temperature | 85°C |
| Mechanical Life | 20000000Cycles |
| Min Operating Temperature | -55°C |
| Mount | Chassis Mount, Screw |
| Operating Force | 361N |
| Operating Position | 0.02inch |
| Orientation | Straight |
| Overtravel | 152mm |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | Unknown |
| RoHS Compliant | Yes |
| Sealable | No (Without) |
| Series | BZ |
| Switch Function | On-Mom |
| Termination | Screw |
| Throw Configuration | SPDT |
| Voltage Rating (AC) | 125V |
| DC Rated Voltage | 125V |
| Weight | 286g |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell BZ-2RS-A2 Datasheet
Download the complete datasheet for Honeywell BZ-2RS-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.
