SPDT momentary snap acting switch with a 15A contact current rating and silver contacts. Features a 4.37mm overtravel, 508mm straight lever actuator, and screw terminals for chassis or panel mounting. Operates within a temperature range of -55°C to 85°C, with a mechanical life of 20,000,000 cycles. Rated for 125VDC and 125VAC, with a maximum AC voltage rating of 480V and a maximum DC voltage rating of 250V. RoHS compliant.
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RW80161-A2 technical specifications.
General
Actuator Length
508mm
Actuator Type
STRAIGHT LEVER
Contact Current Rating
15A
Contact Material
Silver
Depth
17.45mm
Material
Plastic
Max Current Rating
16A
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
480V
Max Voltage Rating (DC)
250V
Mechanical Life
20000000Cycles
Mount
Chassis Mount, Screw
Orientation
Straight
Overtravel
437mm
Package Quantity
5
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
3401g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2RW80161-A2 Datasheet
Download the complete datasheet for Honeywell BZ-2RW80161-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

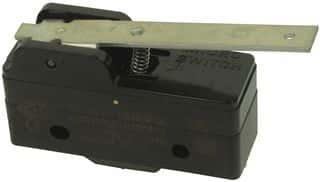

Product Images
