SPDT snap action switch featuring a straight lever actuator. Rated for 16A at 480VAC and 250VDC, with a 125V AC/DC rating. Silver contacts and a mechanical life of 20,000,000 cycles. Operates within a temperature range of -55°C to 85°C. Chassis mountable via screw terminals.
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RW84467-A2 technical specifications.
General
Actuator Length
1016mm
Contact Material
Silver
Current Rating
15A
Depth
17.45mm
Material
Plastic
Max Current Rating
16A
Max Operating Temperature
85°C
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
480V
Max Voltage Rating (DC)
250V
Mount
Chassis Mount, Screw
Orientation
Straight
Overtravel
676mm
Package Quantity
5
Packaging
Bulk
Pretravel
1427mm
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
3401g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2RW84467-A2 Datasheet
Download the complete datasheet for Honeywell BZ-2RW84467-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

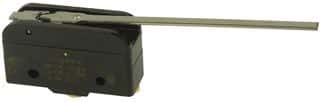

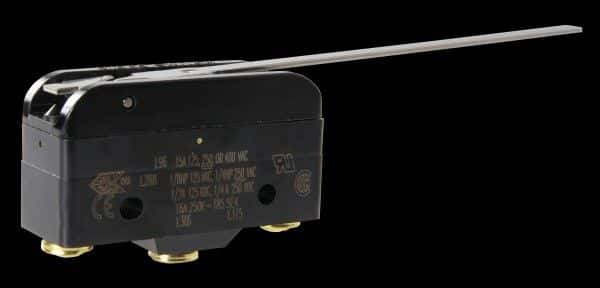

Product Images
