SPDT snap-action switch featuring a straight lever actuator with a 1524mm length. Rated for 15A at 125VAC/125VDC, it offers silver contacts and a 2-position, on-mom function. This chassis-mount switch utilizes screw terminals and boasts a mechanical life of 20,000,000 cycles, with an electrical life of 100,000 cycles. Operating temperature range is -55°C to 85°C, and it is RoHS compliant.
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-2RW863-A2 technical specifications.
General
Actuator Length
1524mm
Actuator Type
Lever
Approvals
UL
Contact Current Rating
15A
Contact Material
Silver
Contact Type
Snap Action
Current Rating
15A
Depth
17.5mm
Differential Travel
0.145inch
Electrical Life
100000Cycles
Lead Free
Lead Free
Length
24.13mm
Material
Plastic
Max Current Rating
15A
Max Operating Temperature
85°C
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Mount
Chassis Mount, Screw
Number of Positions
2
Operating Position
0.03inch
Orientation
Straight
Overtravel
127mm
Package Quantity
5
Packaging
Bulk
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
295g
Width
1.94inch
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-2RW863-A2 Datasheet
Download the complete datasheet for Honeywell BZ-2RW863-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

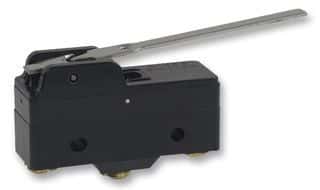

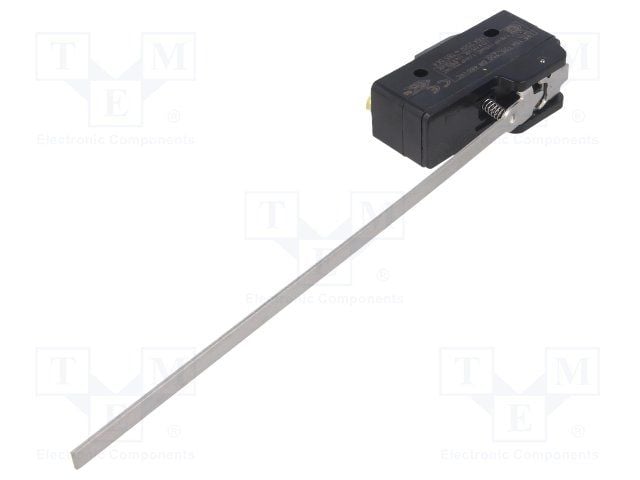

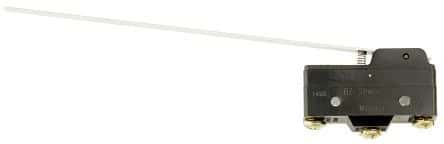

Product Images
