SPDT momentary snap acting/limit switch featuring a pin plunger actuator and screw terminals. Rated for 10A at 125V AC, with a maximum AC voltage rating of 480V. Offers a mechanical life of 20,000,000 cycles and operates within a temperature range of -55°C to 85°C. Constructed from plastic with silver contacts, this chassis and panel mountable switch is RoHS compliant.
Current Rating10A
MountingChassis Mount, Panel, Screw
Quick Jump:
Technical Specifications
Honeywell BZ-R88-A2 technical specifications.
General
Actuator Type
PIN PLUNGER
Approvals
CSA
Contact Current Rating
10A
Contact Material
Silver
Current Rating
10A
Depth
17.45mm
Lead Free
Lead Free
Length
49.28mm
Material
Plastic
Max Current Rating
10A
Max Operating Temperature
85°C
Mechanical Life
20000000Cycles
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
480V
Mount
Chassis Mount, Panel, Screw
Operating Force
25N
Orientation
Straight
Package Quantity
5
Packaging
Bulk
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-Mom
Termination
Screw
Throw Configuration
SPDT
Voltage Rating (AC)
125V
Weight
3401g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-R88-A2 Datasheet
Download the complete datasheet for Honeywell BZ-R88-A2 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

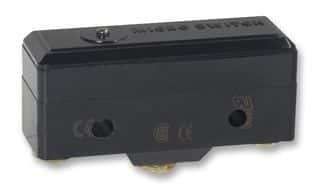

Product Images
