SPDT momentary snap action switch featuring a plastic plunger actuator for panel mounting. Rated for 15A at 125VAC and 125VDC, with a maximum AC voltage rating of 480V and DC voltage rating of 250V. Offers a mechanical life of 20,000,000 cycles and operates within a temperature range of -55°C to 85°C. Termination is via solder, with a pretravel of 0.012 inches and an operating force of 250N.
Current Rating15A
MountingChassis Mount, Screw, Solder
Quick Jump:
Technical Specifications
Honeywell BZ-RX20 technical specifications.
General
Contact Material
Silver
Current Rating
15A
Material
Plastic
Max Operating Temperature
85°C
Min Operating Temperature
-55°C
Max Voltage Rating (AC)
480V
Max Voltage Rating (DC)
250V
Mechanical Life
20000000Cycles
Mount
Chassis Mount, Screw, Solder
Operating Force
250N
Operating Position
0.625inch
Orientation
Straight
Package Quantity
5
Packaging
Bulk
Pretravel
0.012inch
Reach SVHC Compliant
No
RoHS Compliant
Yes
Sealable
No (Without)
Series
BZ
Switch Function
On-On
Termination
Solder
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Weight
3401g
Compliance
RoHS
Compliant
Datasheet
Honeywell BZ-RX20 Datasheet
Download the complete datasheet for Honeywell BZ-RX20 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

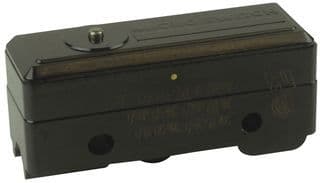

Product Images
