SPDT limit switch with snap-action contacts, featuring a top roller plunger actuator and screw mounting. Rated for 15A at 600VAC and 250VDC, with a 1/4HP rating. Operates with a 3.62N force and offers 556mm overtravel. Terminated via conduit, this switch is RoHS compliant and rated IP40. Dimensions are 77.2mm L x 44.4mm W x 82mm H, with an operating temperature range of -32°C to 71°C.
Current Rating15A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell BZE6-2RQ technical specifications.
General
Actuator Type
PLUNGER
Approvals
UL, CSA
Contact Current Rating
15A
Contact Type
Snap Action
Current Rating
15A
Depth
77.2mm
Height
82mm
Length
77.2mm
Max Current Rating
15A
Max Operating Temperature
71°C
Min Operating Temperature
-32°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
250V
Mount
Chassis Mount, Screw
Number of Poles
1
Number of Positions
2
Operating Force
361N
Orientation
Straight
Overtravel
556mm
Packaging
Bulk
Ratings
IP40
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
E6
Switch Function
On-Mom
Termination
Conduit
Throw Configuration
SPDT
Voltage Rating (AC)
125V
DC Rated Voltage
125V
Width
44.4mm
Compliance
RoHS
Compliant
Datasheet
Honeywell BZE6-2RQ Datasheet
Download the complete datasheet for Honeywell BZE6-2RQ to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

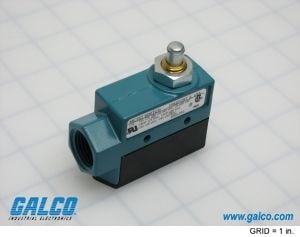

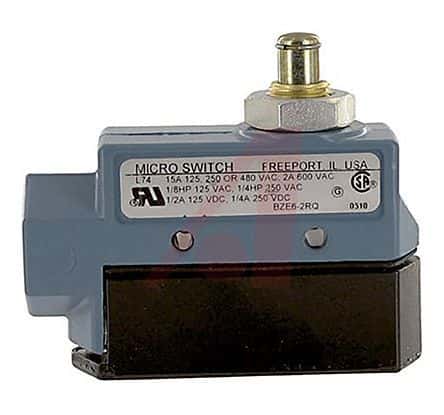

Product Images
