Open loop Hall effect current sensor for AC/DC applications, featuring a 40mA current rating and 1.5% accuracy. This module-type sensor operates with a supply voltage range of 4.5V to 10.5V DC, drawing a nominal supply current of 9mA. It offers a sensitivity of 15mV/A and a fast 3µs response time, with a coil resistance of 120 Ohms. Designed for PCB mounting with solder termination, it operates across a temperature range of -25°C to 100°C.
FrequencyN/A
PackageModule
Current Rating40mA
MountingPCB
Quick Jump:
Technical Specifications
Honeywell CSLW6B40M technical specifications.
General
| Accuracy | 1.5% |
| Package/Case | Module |
| Coil Resistance | 120R |
| Current Rating | 40mA |
| Current Sensing | 40mA |
| Max Operating Temperature | 100°C |
| Min Operating Temperature | -25°C |
| Max Supply Current | 9mA |
| Max Supply Voltage (DC) | 10.5V |
| Min Supply Voltage (DC) | 4.5V |
| Max Supply Voltage | 10.5V |
| Min Supply Voltage | 4.5V |
| Mount | PCB |
| Nominal Supply Current | 9mA |
| Number of Channels | 1 |
| Operating Frequency | N/A |
| Package Quantity | 5 |
| Packaging | Bulk |
| Reach SVHC Compliant | No |
| Response Time | 3us |
| RoHS Compliant | Yes |
| Sensitivity | 15mV/A |
| Series | CSLW |
| Termination | Solder |
| Type | Hall Effect |
Compliance
| RoHS | Compliant |
Datasheet
Honeywell CSLW6B40M Datasheet
Download the complete datasheet for Honeywell CSLW6B40M to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

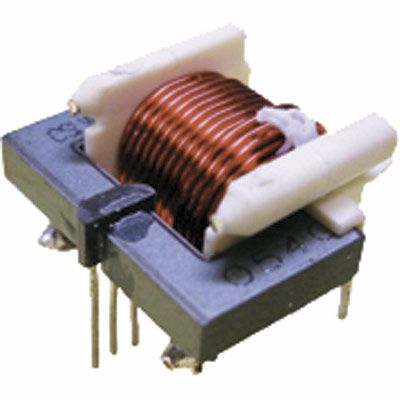

Product Images
