Honeywell
GKEA03L
Switch Safety Interlock N.O./N.C. SPST/SPST Key 600VAC 250VDC Screw Mount Conduit 1000000Cycles
Current Rating10A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell GKEA03L technical specifications.
General
Actuator Type
Disconnect
Contact Material
Silver
Contact Plating
Silver
Current Rating
10A
Depth
29.4mm
Length
92.2mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
600V
Max Voltage Rating (DC)
250V
Mechanical Life
1000000Cycles
Mount
Chassis Mount, Screw
Operating Force
1530gf
Packaging
Bulk
Ratings
IP66, Waterproof, Water Resistant, Dust Tight
Reach SVHC Compliant
Unknown
RoHS Compliant
Yes
Series
GKE
Termination
Screw
Throw Configuration
DPST
Voltage Rating (AC)
120V
DC Rated Voltage
24V
Width
24.2mm
Compliance
RoHS
Compliant
Datasheet
Honeywell GKEA03L Datasheet
Download the complete datasheet for Honeywell GKEA03L to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

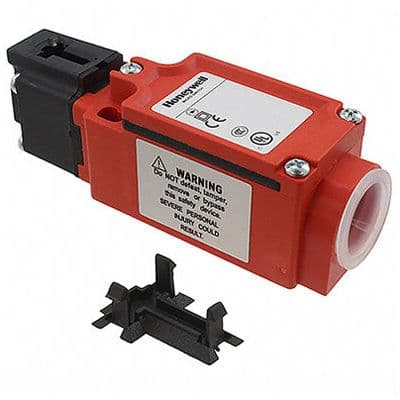

Product Images
