Honeywell
GKNA21
Switch Safety Interlock N.O./N.C. DPST/SPST Key 240VAC 250VDC Screw Mount Conduit 1000000Cycles
Current Rating10A
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell GKNA21 technical specifications.
General
Actuator Type
Disconnect
Contact Material
Silver
Contact Plating
Silver
Current Rating
10A
Depth
30mm
Length
90mm
Max Operating Temperature
85°C
Min Operating Temperature
-25°C
Max Voltage Rating (AC)
240V
Max Voltage Rating (DC)
250V
Mechanical Life
500000Cycles
Mount
Chassis Mount, Screw
Number of Positions
2
Packaging
Bulk
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
Yes
Series
GKN
Termination
Screw
Throw Configuration
3PST, 3P3T, DPST
Voltage Rating (AC)
240V
DC Rated Voltage
125V
Width
40mm
Compliance
RoHS
Compliant
Datasheet
Honeywell GKNA21 Datasheet
Download the complete datasheet for Honeywell GKNA21 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

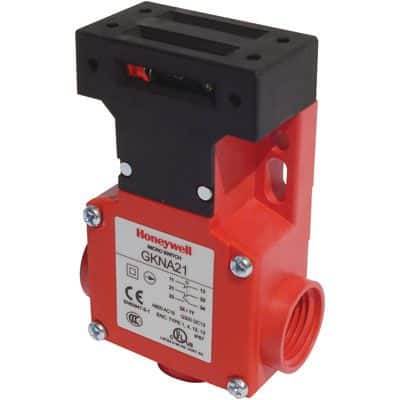

Product Images
