Honeywell
GLAA22D
Snap Acting/Limit Switch, DPDT, Momentary, 0.55A, 125VDC, Screw Terminal, Roller Arm Actuator, Panel Mount
Current Rating100mA
MountingChassis Mount, Screw
Quick Jump:
Technical Specifications
Honeywell GLAA22D technical specifications.
General
Contact Material
Gold
Current Rating
100mA
Differential Travel
17mm
Max Current Rating
100mA
Max Operating Temperature
85°C
Mechanical Life
15000000Cycles
Min Operating Temperature
-25°C
Mount
Chassis Mount, Screw
Operating Force
95N
Operating Position
610mm
Orientation
Straight
Overtravel
90mm
Package Quantity
1
Packaging
Bulk
Pretravel
42mm
Ratings
IP67, Waterproof, Dust Tight
RoHS Compliant
No
Series
GLS
Switch Function
On-Mom
Termination
Conduit
Throw Configuration
DPDT
Voltage Rating (AC)
50V
DC Rated Voltage
50V
Compliance
RoHS
Not Compliant
Datasheet
Honeywell GLAA22D Datasheet
Download the complete datasheet for Honeywell GLAA22D to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

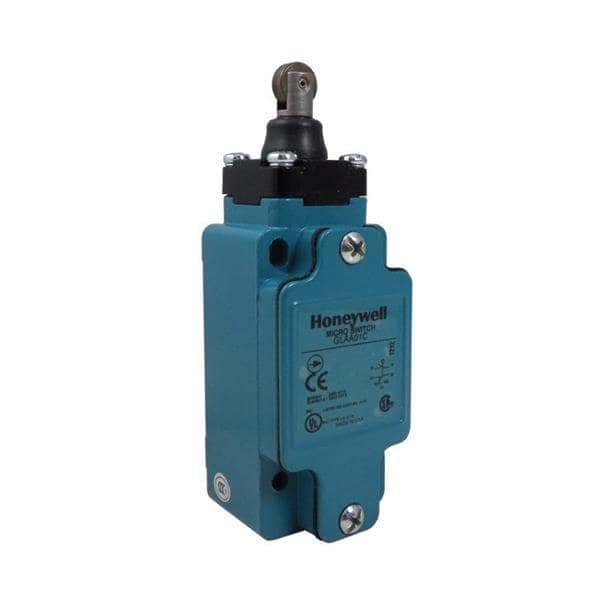

Product Images
